REF : S1402-R01-ROC

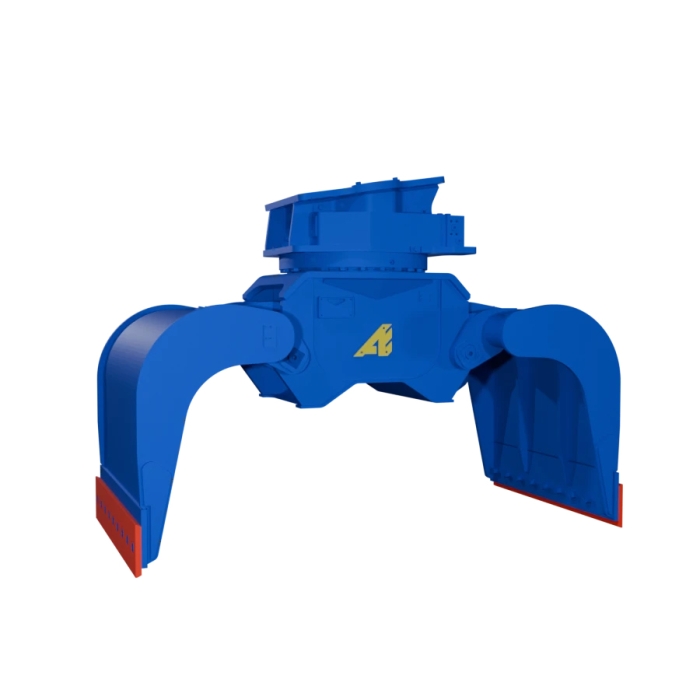

DEMOLITION AND SORTING GRAB
This equipment is no longer available for sale. We invite you to check the available spare parts listed below or contact our sales department at +33 3 24 33 64 32 or by email at commerce@arden-equipment.com.
Description
This equipment is no longer available for sale. We invite you to check the available spare parts listed below or contact our sales department at +33 3 24 33 64 32 or by email at commerce@arden-equipment.com.
More Information
Specification |
Details |
|---|---|
| SKU | S1402-R01-ROC |
| Professions | Demolition, Earthmoving, Landscaping, Quarry, Recycling, Scrap |
| A (mm) | 2000 |
| B (mm) | 1430 |
| C (mm) | 1405 |
| D (mm) | 1560 |
| L (mm) | 1000 |
| Working pressure (Mpa) | 35 |
| Flow min (l/min) | 55 |
| Maximum flow rate (l/min) | 110 |
| Rotation flow rate max (L/min) | 20 |
| Rotation pressure (MPa) | 14 |
| Rotation flow rate min (l/min) | 14 |
| Mounting / Tip | fiches\Eclates\Eclates En\En_Pieces_rechanges_S1402-_STD_revB.pdf |
| H (mm) | 616 |
| Weight (kg) | 656 |
Spare Parts
Please note that these PRs are associated with the latest model currently in production.
Thank you for checking your equipment with the configurator by entering your serial number.
See the configurator| N° | Name | Reference | Actions |
|---|---|---|---|
| Spare part | |||
ROTATION 30T 1MOTEUR |
RAE0301-1DE00 |
|
|
Rotation 30 t 2 moteur |
RAE0301-2DE00 |
|
|
Threaded adapter |
RAC30316 | ||
Hose |
FLEX3029 | ||
Lock washer |
RZ10 | ||
Socket head capscrew |
CHC10-040C12 | ||
Socket head capscrew |
CHC20-110C12 | ||
Lock washer |
RZ20 | ||
Nut |
H20C10 | ||
Bushing |
X80258 | ||
Pin |
X71453 | ||
Hex socket Countersunk head sc |
FHC20-060C10 | ||
C-LAME NU S1100-S1201-S1402_ |
CLNU-16550 |
|
|
Lock washer |
RW20 | ||
Flat washer |
RP32-070-05 | ||
Steering link |
X16550-200 | ||
Bushing |
X80257 | ||
Self-locking nut |
HFR30 | ||
Flat washer |
RP32-070-03 | ||
Pin |
X71454 | ||
BATI PINCES S1402HD |
X24468-100 |
|
|
T-Threaded adapter |
RAC30314 | ||
Connection |
RAC30347 | ||
Packing ring |
J30027 | ||
Plug |
RAC30177 | ||
Cylinder |
V1305 | ||
VERIN 56x90C290 VALVE EQUI REMPLACE PPAR V1208A |
V1264 |
|
|
PINCE A USINEE S1402B - npu |
X22008-200 |
|
|
PINCE A USINEE S1402B-ROC |
X22014-200 |
|
|
PINCE A USINEE S1402B |
X25705-200 |
|
|
PINCE B USINEE -npu |
X22008-300 |
|
|
PINCE B USINEE S1402B-ROC |
X22014-300 |
|
|
PINCE B USINEE S1402B |
X25705-300 |
|
|
Grease nipple |
GM8 | ||
Seal Kit |
V1226-PJ | ||
BLADE SET WITH NUTS AND BOLTS |
CL-16550 |
