REF : AB1853DA

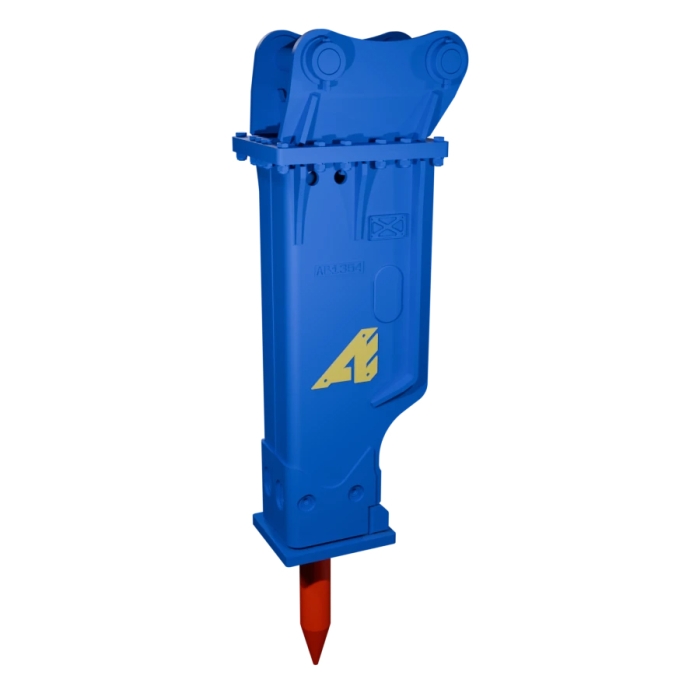

HYDRAULIC BREAKER AB1853DA
More Information
| Specification | Details |
|---|---|
| SKU | AB1853DA |
| Professions | Demolition, Earthmoving, Landscaping |
| Working pressure (Mpa) | 21 |
| Flow min (l/min) | 119 |
| Maximum flow rate (l/min) | 161 |
| Noise level dB(A) | 124 |
| Weight (kg) | 1525 |
Files
Spare Parts
Please note that these PRs are associated with the latest model currently in production.
Thank you for checking your equipment with the configurator by entering your serial number.
See the configurator| N° | Name | Reference | Actions |
|---|---|---|---|
| Spare part | |||
| BLOC CENTRAL | PRBB222B-11106 |
|
|
| JOINT | PRB007002-14000 |
|
|
| JOINT EN U À LÈVRES | PRB007004-14000 |
|
|
| JOINT COMPOSITE | PRB007006-14000 |
|
|
| RACCORD | PRBB180-11800 |
|
|
| BOUCHON | PRBB180-11900 |
|
|
| VOIR CAISSE - liste PF | PRB007001-0290P |
|
|
| BOUCHON 6 PANS | PRB004012-10000 |
|
|
| VOIR CAISSE - liste PF | PRB004012-30800 |
|
|
| BOUCHON | PRB004012-10400 |
|
|
| VOIR CAISSE - liste PF | PRB007001-0110P |
|
|
| AXE | PRBB220-11110 |
|
|
| PISTON | PRBB222B-11201 |
|
|
| BAGUE BLOC CENTRAL | PRBB220V-11301 |
|
|
| JOINT | PRB007005-13800 |
|
|
| JOINT COMPOSITE | PRB007007-13800 |
|
|
| JOINT TORIQUE | PRB007001-1650G |
|
|
| NEZ MARTEAU | PRBB230B-12102 |
|
|
| BAGUE | PRBB222V-12401 |
|
|
| BAGUE FOURREAU | PRBB222V-12301 |
|
|
| Pin | PRBB220-12650 | ||
| Rubber plug | PRBB030-12620 | ||
| RETAINER PIN | PRBB230B-12600 | ||
| BOUCHON | PRB004014-10400 |
|
|
| BOUCHON | PRBB152V-12111 |
|
|
| VOIR CAISSE - liste PF | PRB007001-0350G |
|
|
| CHAMBRE ARRIÈRE | PRBB222B-13100 |
|
|
| BOUCHON | PRB004012-10200 |
|
|
| JOINT TORIQUE | PRB007001-0200P |
|
|
| MOIL POINT | PRBB210B-12510 | ||
| CHISEL POINT | PRBB210B-12520 | ||
| FLAT END POINT | PRBB210B-12540 | ||
| KIT VALVE COMPLÈTE | PRBB222V-114A0 |
|
|
| KIT DE REGLAGE | PRBB070V-11700 |
|
|
| KIT TIRANT DE MARTEAU | PRBB222B-12200 |
|
|
| KIT VALVE AZOTE | PRBB008-13200 |
|
|
| ACCUMULATEUR | PRBB220-14000 |
|
|
| SOUPAPE EN CHAMPIGNON | PRBB300-14400 |
|
|
| KIT VALVE ACCUMULATEUR | PRBB300-14500 |
|
|
| Seal Kit | PRBB222V-SK004 | ||
| BRETELLE (BENNE) | PRBB230D-55001 |
|
|
| AMORTISSEUR INFÉRIEUR | PRBB230D-35101 |
|
|
| AMORTISSEUR SUPERIEUR | PRBB221V-35200 |
|
|
| PLAT DE MAINTIEN | PRBB222V-35401 |
|
|
| VIS À TÊTE HEXAGONALE | PRB002001-24075 |
|
|
| ECROU HEXAGONAL | PRB002003-2400N |
|
|
| PLAQUE GUIDE (NYLON) | PRBB230D-27219 |
|
|
| PLAQUE GUIDE (NYLON) | PRBB250S-27229 |
|
|
| PLAQUE GUIDE (NYLON) | PRBB230D-2713A |
|
|
| O-RING | PRB007001-0440P |
|
|
| CAISSON DE TÊTE | PRBB222V-55024 |
|
|
| AMORTISSEUR DE TÊTE | PRBB181V-27110 |
|
|
| BOUCHON | PRBB300V-12801 |
|
|
| BOUCHON ROND FOURREAU | PRBB050V-12800 |
|
|
| COUVERCLE | PRBB102V-27129 |
|
|
| COUVERCLE AVANT | PRBB222V-37600 |
|
|
| BOUCHON | PRBB181V-27034 |
|
|
| VIS À TÊTE FRAISÉE | PRB002005-12035 |
|
|
| BOUCHON | PRBB230D-12800 |
|
|
| VIS À TÊTE HEXAGONALE | PRB002A01-14030 |
|
|
| RONDELLE GROWER | PRB002AH8-14000 |
|
|
| GRAISSEUR | PRB004013-10400 |
|
|
| RACCORD | PRB004016-10405 |
|
|
| FLEXIBLE | PRB100901-AA045055 |
|
|
| FLEXIBLE | PRB101602-AA230044 |
|
