REF : QA23-M101

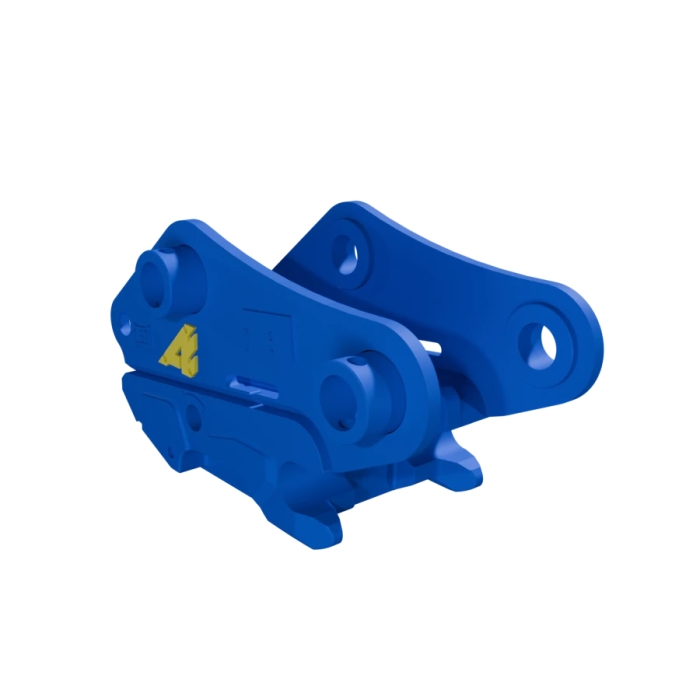

TYPE QA MECHANICAL QUICK HITCH
This equipment is no longer available for sale. We invite you to check the available spare parts listed below or contact our sales department at +33 3 24 33 64 32 or by email at commerce@arden-equipment.com.
Description
This equipment is no longer available for sale. We invite you to check the available spare parts listed below or contact our sales department at +33 3 24 33 64 32 or by email at commerce@arden-equipment.com.
More Information
Specification |
Details |
|---|---|
| SKU | QA23-M101 |
| Professions | Demolition, Earthmoving, Landscaping, Quarry, Railway, Recycling, Scrap |
| A (mm) | 347 |
| B (mm) | 55 |
| C (mm) | 269.5 |
| Mounting / Tip | fiches\Eclates\Eclates En\En_Pieces_rechanges_QA23-M_revB.pdf |
| Weight (kg) | 77 |
| Minimum carrying weight (T) | 6 |
| Maximum carrying weight (T) | 12 |
Spare Parts
Please note that these PRs are associated with the latest model currently in production.
Thank you for checking your equipment with the configurator by entering your serial number.
See the configurator| N° | Name | Reference | Actions |
|---|---|---|---|
| Spare part | |||
ENSEMBLE EMBASE MOULEE QA23 MECANIQUE |
X3694M-ENS |
|
|
Square |
X3687 | ||
STIRRUP |
X3615 | ||
Fork |
X3686 | ||
trigger |
X3707 | ||
Spring |
X91600 | ||
Spring |
X91257 | ||
Spring |
X91259 | ||
Spring |
X94758 | ||
Shim ring |
X91604-100 | ||
SENSOR |
X94953 | ||
Spring |
X94226 | ||
QA LOCK |
X94748 | ||
VIS DE CENTRAGE CHC BOUT FILET 6x30 M5 ISO7379 |
X95563 |
|
|
Screw plug |
X92117 | ||
pressure screw without head |
X94813 | ||
SEAL |
X94763 | ||
Spring |
X94691 | ||
bottom cover sheet |
X94762 | ||
Hood |
X95142 | ||
Cover seal |
X91617 | ||
Fork pin |
X91277 | ||
Bushing |
X80191 | ||
Pin |
X73938 | ||
SEAL |
J30061 | ||
Wiper ring |
J30069 | ||
SEAL |
J30424 | ||
SEAL |
J30473 | ||
Disc springs |
RR10-020-05 | ||
Threaded adapter |
RAC30611 | ||
Flat washer |
RP06 | ||
Socket head capscrew |
CHC05-008C08 | ||
Socket head capscrew |
CHC06-012C12 | ||
Socket head capscrew |
CHC08-010C10TR | ||
Hex socket Countersunk head sc |
FHC06-012C10 | ||
Hex socket Countersunk head sc |
FHC06-016C10 | ||
Stop screw |
HCPL05-018C10 | ||
Stop screw |
HCPL10-020C10 | ||
Stop screw |
HCPL16-012C10PF | ||
Self-locking nut |
HFR06 | ||
Spring-type straight pin |
GE03-012 | ||
Spring-type straight pin |
GE05-030 | ||
Spring-type straight pin |
GE06-040 | ||
Spring-type straight pin |
GE06-045 | ||
Spring-type straight pin |
GE10-040 | ||
Spring-type straight pin |
GE10-045 | ||
EXIT INDICATOR |
FLEXQA23M | ||
cylindrical pin |
GTC08-032 | ||
cylindrical pin |
GTC10-055 | ||
cylindrical pin |
GTC10-065 | ||
push cam |
X28352-005 | ||
Grease nipple |
GM8 |
