REF : QA05AM194
TYPE QA MECHANICAL QUICK HITCH

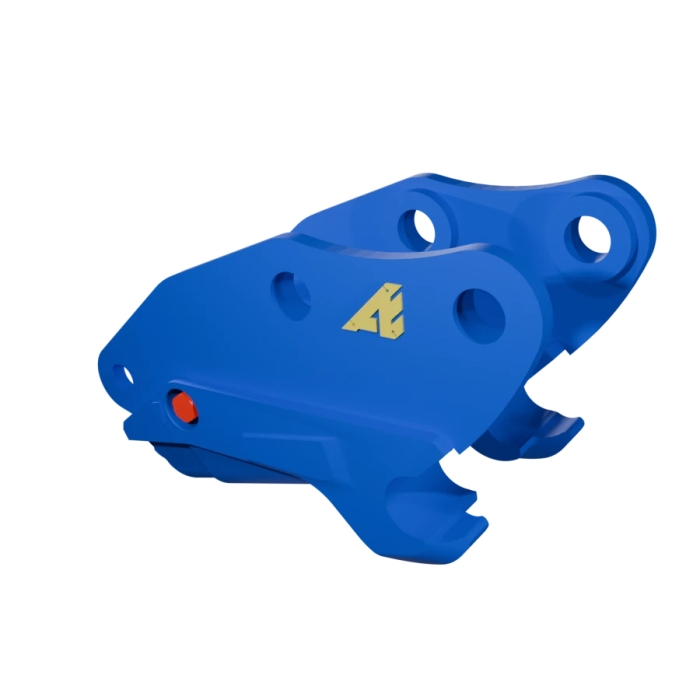

The QA05AM quick couplers allow for safe and rapid tool changes for excavators from 0.8 to 3 tonnes. Available in a mechanical release version, they combine compactness and compatibility with reversible buckets.
Description
It is essential to ensure that the selected equipment complies with the manufacturer’s recommendations for your machine.The configurator is available to help you verify compatibility between the attachment and your excavator.Please check that your buckets are fully compatible with your QA quick...
It is essential to ensure that the selected equipment complies with the manufacturer’s recommendations for your machine.
The configurator is available to help you verify compatibility between the attachment and your excavator.
Please check that your buckets are fully compatible with your QA quick couplers. We invite you to consult the correspondence table in the Documentation tab.
The Quick Arden quick coupler range from Arden Equipment has been developed to ensure maximum safety and optimal work efficiency, regardless of your excavator configuration.
Quick and safe changeover
Thanks to their automatic locking, the QA models allow tool changes without leaving the cab (hydraulic version) or via a key release system (mechanical). The safety paddle on the front axle and visual locking indicators ensure increased safety.
Robust and versatile design
Compact, lightweight, and compatible with reversible buckets for the QA Series 3, these couplers fit a wide range of excavators. Their automatic slack adjustment and integrated handling hole complete a design designed to make your work easier.
Technical data and visuals are non-contractual and subject to change without prior notice.
We remain at your disposal for any technical advice by phone at +33 (0)3 24 33 64 32 or by email at commerce@arden-equipment.com.
Arden Equipment cannot be held liable in the event of improper compatibility.
The configurator is available to help you verify compatibility between the attachment and your excavator.
Please check that your buckets are fully compatible with your QA quick couplers. We invite you to consult the correspondence table in the Documentation tab.
The Quick Arden quick coupler range from Arden Equipment has been developed to ensure maximum safety and optimal work efficiency, regardless of your excavator configuration.
Quick and safe changeover
Thanks to their automatic locking, the QA models allow tool changes without leaving the cab (hydraulic version) or via a key release system (mechanical). The safety paddle on the front axle and visual locking indicators ensure increased safety.
Robust and versatile design
Compact, lightweight, and compatible with reversible buckets for the QA Series 3, these couplers fit a wide range of excavators. Their automatic slack adjustment and integrated handling hole complete a design designed to make your work easier.
Technical data and visuals are non-contractual and subject to change without prior notice.
We remain at your disposal for any technical advice by phone at +33 (0)3 24 33 64 32 or by email at commerce@arden-equipment.com.
Arden Equipment cannot be held liable in the event of improper compatibility.
It is essential to ensure that the selected equipment complies with the manufacturer’s recommendations for your machine.
The configurator is available to help you verify compatibility between the attachment and your excavator.
Please check that your buckets are fully compatible with your QA quick couplers. We invite you to consult the correspondence table in the Documentation tab.
The Quick Arden quick coupler range from Arden Equipment has been developed to ensure maximum safety and optimal work efficiency, regardless of your excavator configuration.
Quick and safe changeover
Thanks to their automatic locking, the QA models allow tool changes without leaving the cab (hydraulic version) or via a key release system (mechanical). The safety paddle on the front axle and visual locking indicators ensure increased safety.
Robust and versatile design
Compact, lightweight, and compatible with reversible buckets for the QA Series 3, these couplers fit a wide range of excavators. Their automatic slack adjustment and integrated handling hole complete a design designed to make your work easier.
Technical data and visuals are non-contractual and subject to change without prior notice.
We remain at your disposal for any technical advice by phone at +33 (0)3 24 33 64 32 or by email at commerce@arden-equipment.com.
Arden Equipment cannot be held liable in the event of improper compatibility.
The configurator is available to help you verify compatibility between the attachment and your excavator.
Please check that your buckets are fully compatible with your QA quick couplers. We invite you to consult the correspondence table in the Documentation tab.
The Quick Arden quick coupler range from Arden Equipment has been developed to ensure maximum safety and optimal work efficiency, regardless of your excavator configuration.
Quick and safe changeover
Thanks to their automatic locking, the QA models allow tool changes without leaving the cab (hydraulic version) or via a key release system (mechanical). The safety paddle on the front axle and visual locking indicators ensure increased safety.
Robust and versatile design
Compact, lightweight, and compatible with reversible buckets for the QA Series 3, these couplers fit a wide range of excavators. Their automatic slack adjustment and integrated handling hole complete a design designed to make your work easier.
Technical data and visuals are non-contractual and subject to change without prior notice.
We remain at your disposal for any technical advice by phone at +33 (0)3 24 33 64 32 or by email at commerce@arden-equipment.com.
Arden Equipment cannot be held liable in the event of improper compatibility.
More Information
| Specification | Details |
|---|---|
| SKU | QA05AM194 |
| Professions | Demolition, Earthmoving, Landscaping, Quarry, Railway, Recycling, Scrap |

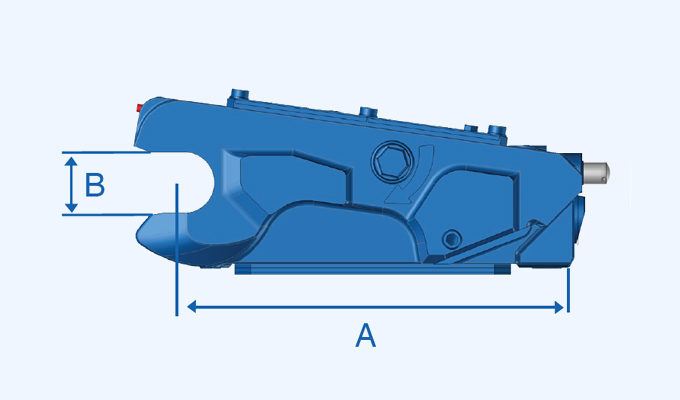

| A (mm) | 264 |
| B (mm) | 40 |

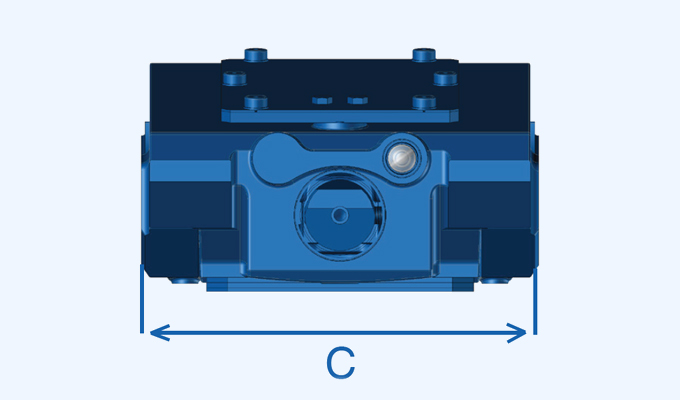

| C (mm) | 184 |
| Weight (kg) | 22.2 |
| Minimum carrying weight (T) | 0,8 |
| Maximum carrying weight (T) | 3,5 |
Files
Spare Parts
Please note that these PRs are associated with the latest model currently in production.
Thank you for checking your equipment with the configurator by entering your serial number.
See the configurator| N° | Name | Reference | Actions |
|---|---|---|---|
| Spare part | |||
| EMBASE QA05A USINEE (Moulé) | X3076 |
|
|
| Left lock | X92411 | ||
| Right lock | X92419 | ||
| Safety bolt | X92412 | ||
| CASTED STIRRUP QA05 | X3109 | ||
| Fork pin | X92414 | ||
| Fork | X3110 | ||
| Pressure spring | X92416 | ||
| COVER | X92417 | ||
| Cover seal | X92418 | ||
| Plug | RAC30294 | ||
| Key | X92621 | ||
| Special grease 0,5kg | X92115-05 | ||
| Screw plug | X92117 | ||
| Wedge | X91316-100 | ||
| SEAL | J30376 | ||
| SEAL | J30377 | ||
| Spring-type straight pin | GE08-036 |
