REF : AES050-H005

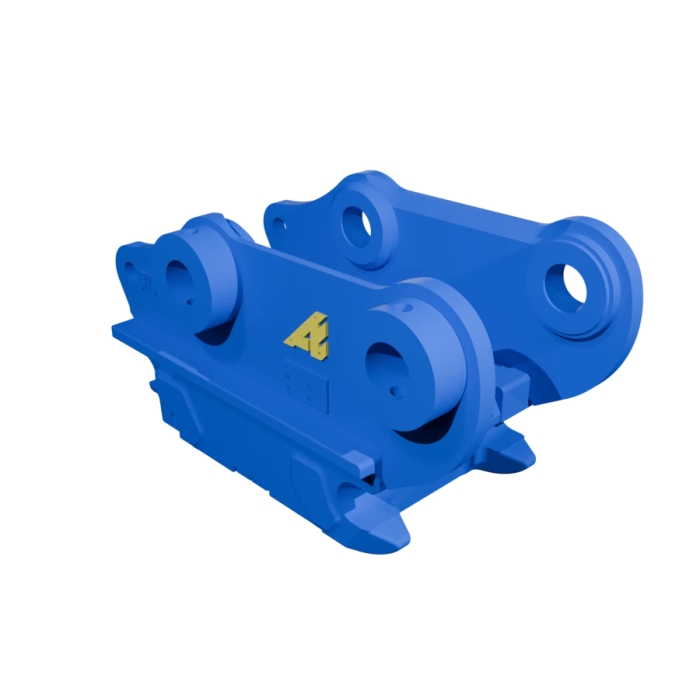

TYPE S HYDRAULIC QUICK HITCH
This equipment is no longer available for sale. We invite you to check the available spare parts listed below or contact our sales department at +33 3 24 33 64 32 or by email at commerce@arden-equipment.com.
Description
This equipment is no longer available for sale. We invite you to check the available spare parts listed below or contact our sales department at +33 3 24 33 64 32 or by email at commerce@arden-equipment.com.
More Information
Specification |
Details |
|---|---|
| SKU | AES050-H005 |
| Professions | Demolition, Earthmoving, Landscaping, Quarry, Railway, Recycling, Scrap |
| A (mm) | 430 |
| B (mm) | 50 |
| C (mm) | 65 |
| D (mm) | 268 |
| Working pressure (Mpa) | 35 |
| Flow min (l/min) | 5 |
| Maximum flow rate (l/min) | 15 |
| Mounting / Tip | fiches\Eclates\Eclates En\En_Pieces_rechanges_AES050-H_revA.pdf |
| Weight (kg) | 92 |
Spare Parts
Please note that these PRs are associated with the latest model currently in production.
Thank you for checking your equipment with the configurator by entering your serial number.
See the configurator| N° | Name | Reference | Actions |
|---|---|---|---|
| Spare part | |||
PROTECTION |
X3692 | ||
PIN |
X94855 | ||
WASHER SET |
X94612 | ||
Spring |
X94341 | ||
Spring |
X94842 | ||
Spring |
X94709 | ||
Plate guidance |
X95166 | ||
Spring rod |
X94773 | ||
PIN |
X72971 | ||
Spring-type straight pin |
GE04-024 | ||
Spring-type straight pin |
GE06-050 | ||
Spring-type straight pin |
GE06-060 | ||
Spring-type straight pin |
GE10-060 | ||
centering screw |
X95549 | ||
Socket head capscrew |
CHC08-016C12 | ||
Hex head capscrew |
HM16-020C10 | ||
Flat washer |
RP05L | ||
Flat washer |
RP16 | ||
Self-locking nut |
HFR04 | ||
SEAL |
J30474 | ||
Safety ring |
CIR012E | ||
Grease nipple |
GM8 |
