REF : S0453-R01-BAR
DEMOLITION AND SORTING GRAB
This equipment is no longer available for sale. We invite you to check the available spare parts listed below or contact our sales department at +33 3 24 33 64 32 or by email at commerce@arden-equipment.com.
Description
This equipment is no longer available for sale. We invite you to check the available spare parts listed below or contact our sales department at +33 3 24 33 64 32 or by email at commerce@arden-equipment.com.
More Information
| Specification | Details |
|---|---|
| SKU | S0453-R01-BAR |
| Professions | Demolition, Earthmoving, Landscaping, Quarry, Recycling, Scrap |

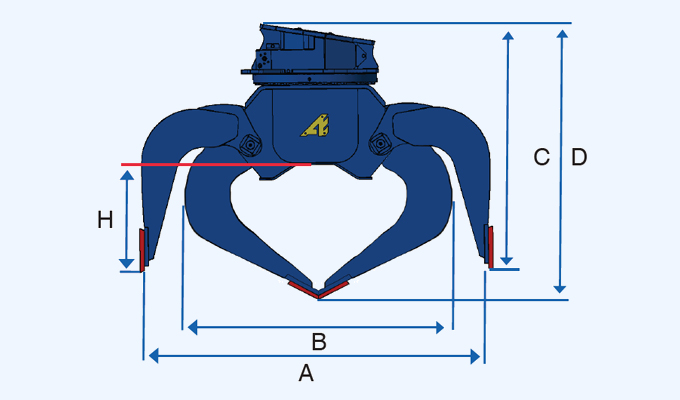

| A (mm) | 1300 |
| B (mm) | 950 |
| C (mm) | 908 |
| D (mm) | 943 |
| L (mm) | 550 |
| Working pressure (Mpa) | 35 |
| Flow min (l/min) | 15 |
| Maximum flow rate (l/min) | 30 |
| Rotation flow rate max (L/min) | 12 |
| Rotation pressure (MPa) | 10 |
| Rotation flow rate min (l/min) | 8 |
| Weight (kg) | 360 |
Spare Parts
Please note that these PRs are associated with the latest model currently in production.
Thank you for checking your equipment with the configurator by entering your serial number.
See the configurator| N° | Name | Reference | Actions |
|---|---|---|---|
| Spare part | |||
| ENSEMBLE ROTATION | RAE0131-1DE01 |
|
|
| Lock washer | RZ12 | ||
| Hex head capscrew | HM12-045C10 | ||
| Threaded adapter | RAC30320 | ||
| Spring-type straight pin | GE08-070 | ||
| Pince B S0453 CLR | X25469-300 |
|
|
| Pince B ROC S0453-A-ROC | X26388-300 |
|
|
| Pince B S0453 GRILLE CLR | X27535-300 |
|
|
| Pin | X72541 | ||
| Pin | X72127 | ||
| Pince A S0453 CLR | X25469-200 |
|
|
| Pince A ROC S0453-A-ROC | X26388-200 |
|
|
| Pince A S0453 GRILLE CLR_ | X27535-200 |
|
|
| Pin | X72542 | ||
| Bati S0453_ | X24134-100 |
|
|
| Bushing | X80262 | ||
| Hose | FLEX3360 | ||
| Threaded adapter | RAC30318 | ||
| VERIN REMPLACE PAR V1301 | V1168 |
|
|
| Steering link | X24134-400 | ||
| UTILISER CL-25469 | CLRNU-25469 |
|
|
| Hex socket Countersunk head sc | FHC16-050C10 | ||
| Nut | H16C10 | ||
| Lock washer | RW16 | ||
| Grease nipple | GM8 | ||
| BLADE SET WITH NUTS AND BOLTS | CL-25469 | ||
| Seal Kit | V1155BPJ |
