REF : S0223-R01-FAP
DEMOLITION AND SORTING GRAB
This equipment is no longer available for sale. We invite you to check the available spare parts listed below or contact our sales department at +33 3 24 33 64 32 or by email at commerce@arden-equipment.com.
Description
This equipment is no longer available for sale. We invite you to check the available spare parts listed below or contact our sales department at +33 3 24 33 64 32 or by email at commerce@arden-equipment.com.
More Information
| Specification | Details |
|---|---|
| SKU | S0223-R01-FAP |
| Professions | Demolition, Earthmoving, Landscaping, Quarry, Recycling, Scrap |

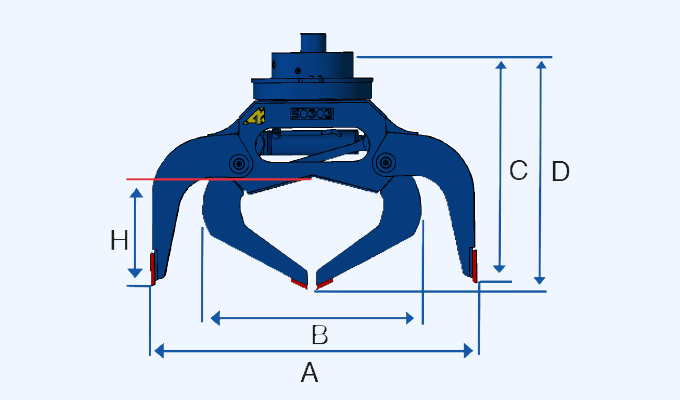

| A (mm) | 1090 |
| B (mm) | 770 |
| C (mm) | 760 |
| D (mm) | 820 |
| L (mm) | 400 |
| Working pressure (Mpa) | 25 |
| Flow min (l/min) | 10 |
| Maximum flow rate (l/min) | 15 |
| Rotation flow rate max (L/min) | 9 |
| Rotation pressure (MPa) | 10 |
| Rotation flow rate min (l/min) | 6 |
| Weight (kg) | 207 |
Spare Parts
Please note that these PRs are associated with the latest model currently in production.
Thank you for checking your equipment with the configurator by entering your serial number.
See the configurator| N° | Name | Reference | Actions |
|---|---|---|---|
| Spare part | |||
| ENSEMBLE ROTATION | RAE0061-1DE01 |
|
|
| Threaded adapter | RAC30320 | ||
| Hex head capscrew | HM12-080C10 | ||
| Lock washer | RZ12 | ||
| Bati S0223_ | X23076-100 |
|
|
| Pin | X72483 | ||
| Spring-type straight pin | GE06-060 | ||
| Bushing | X80468 | ||
| Cylinder | V1202 | ||
| Threaded adapter | RAC30318 | ||
| Hose | FLEX3188 | ||
| C-LAME NU PINCES S0223A-CLB_ | CLNU-26392 |
|
|
| Pince A S0223-A (CLR) | X26392-200 |
|
|
| Pince B S0223-A (CLR) | X26392-300 |
|
|
| Pin | X72484 | ||
| Steering link | X23076-400 | ||
| Hex head capscrew | HM12-070C10 | ||
| Pin | X72485 | ||
| nut | H12C10 | ||
| Hex socket Countersunk head sc | FHC16-045C10 | ||
| Lock washer | RW16 | ||
| Nut | H16C10 | ||
| Hex socket Countersunk head sc | FHC16-055C10 | ||
| LAME CAOUTCHOUC PINCES S0223-A | X94161 |
|
|
| Grease nipple | GM8 | ||
| BLADE SET WITH NUTS AND BOLTS | CL-26392 | ||
| Seal Kit | V1202-PJ |
