REF : AB2453DA
HYDRAULIC BREAKER AB2453DA
This equipment is no longer available for sale. We invite you to check the available spare parts listed below or contact our sales department at +33 3 24 33 64 32 or by email at commerce@arden-equipment.com.
Description
This equipment is no longer available for sale. We invite you to check the available spare parts listed below or contact our sales department at +33 3 24 33 64 32 or by email at commerce@arden-equipment.com.
More Information
Specification |
Details |
|---|---|
| SKU | AB2453DA |
| Professions | Demolition, Earthmoving, Landscaping |
| Working pressure (Mpa) | 21 |
| Flow min (l/min) | 154 |
| Maximum flow rate (l/min) | 204 |
| Noise level dB(A) | 125 |
| Mounting / Tip | fiches\Eclates\Eclates En\En_Pieces_rechanges_AB2453DA_revA.pdf |
| Weight (kg) | 2400 |

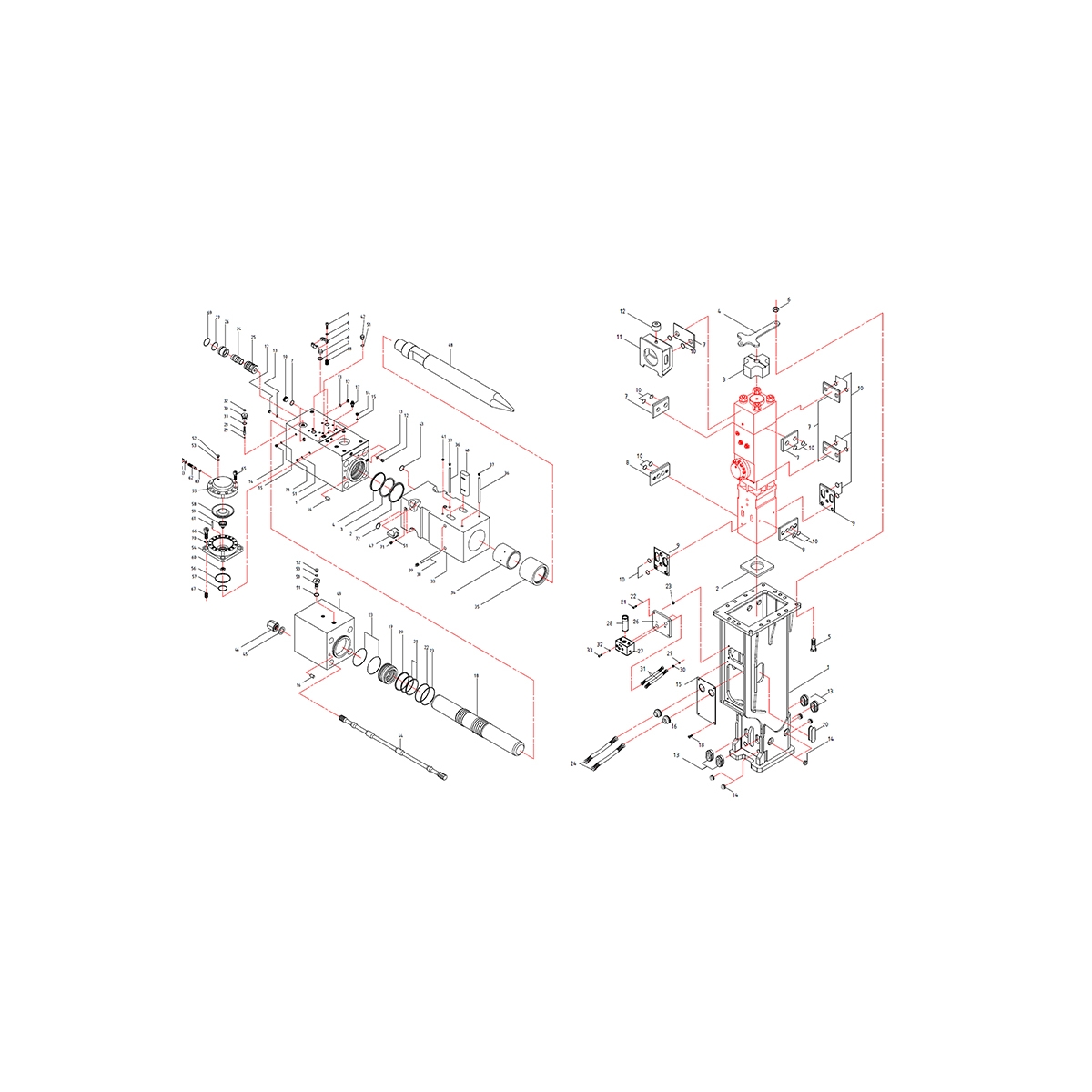

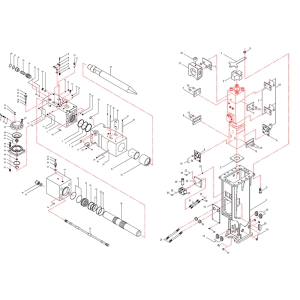

Spare Parts
Please note that these PRs are associated with the latest model currently in production.
Thank you for checking your equipment with the configurator by entering your serial number.
See the configurator| N° | Name | Reference | Actions |
|---|---|---|---|
| Spare part | |||
BLOC CENTRAL |
PRBB302B-11104 |
|
|
JOINT |
PRB007002-16000 |
|
|
JOINT EN U À LÈVRES |
PRB007004-16000 |
|
|
JOINT COMPOSITE |
PRB007006-16000 |
|
|
BRIDE (SAE) |
PRB005060-40202 |
|
|
BRIDE (SAE) |
PRBB300V-11940 |
|
|
VOIR CAISSE - liste PF |
PRB007001-0380P |
|
|
RONDELLE GROWER |
PRB002008-14000 |
|
|
VIS À TÊTE CYLINDRIQUE À 6 PANS CREUX |
PRB002002-14055 |
|
|
VOIR CAISSE - liste PF |
PRB004012-11400 |
|
|
VOIR CAISSE - liste PF |
PRB004012-30800 |
|
|
BOUCHON |
PRB004012-10400 |
|
|
AXE |
PRBB220-11110 |
|
|
RACCORD |
PRB004016-10405 |
|
|
PISTON |
PRBB302B-11200 |
|
|
CYLINDER BUSH |
PRBB300V-11300 |
|
|
JOINT |
PRB007005-15700 |
|
|
JOINT COMPOSITE |
PRB007007-15700 |
|
|
JOINT |
PRB007010-15700 |
|
|
JOINT TORIQUE |
PRB007001-1950G |
|
|
NEZ MARTEAU |
PRBB302B-12103 |
|
|
ROUND BUSH |
PRBB300V-12401 |
|
|
FOURREAU |
PRBB300V-12301 |
|
|
PIN |
PRBB252B-12650 | ||
Rubber plug |
PRBB030-12620 | ||
Pin |
PRBB300V-12670 | ||
Rubber plug |
PRBB450V-12621 | ||
CHISEL PIN |
PRBB302B-12601 |
|
|
BOUCHON |
PRB004014-10400 |
|
|
BOUCHON |
PRBB152V-12111 |
|
|
VOIR CAISSE - liste PF |
PRB007001-0350G |
|
|
CHAMBRE ARRIÈRE |
PRBB302B-13100 |
|
|
VISSERIE |
PRB007019-14020 |
|
|
JOINT TORIQUE |
PRB007001-0500A |
|
|
RONDELLE |
PRB004019-3000W |
|
|
BOUCHON |
PRB004012-10200 |
|
|
JOINT TORIQUE |
PRB007001-0250G |
|
|
MOIL POINT |
PRBB302B-12510 | ||
CHISEL POINT |
PRBB302B-12520 | ||
POINTE PILON |
PRBB302B-12540 | ||
valve set |
PRBB302V-114A0 |
|
|
KIT DE REGLAGE |
PRBB070V-11700 |
|
|
KIT TIRANT DE MARTEAU |
PRBB302B-12200 |
|
|
KIT VALVE AZOTE |
PRBB008-13200 |
|
|
KIT ACCUMULATEUR COMPLET |
PRBB300-14000 |
|
|
SOUPAPE EN CHAMPIGNON |
PRBB300-14400 |
|
|
KIT VALVE ACCUMULATEUR |
PRBB300-14500 |
|
|
SEAL KIT (AB2452) |
PRBB301V-SK004 |
|
|
BRETELLE (BENNE) |
PRBB302D-55000 |
|
|
AMORTISSEUR INFÉRIEUR |
PRBB302D-35100 |
|
|
AMORTISSEUR SUPÉRIEUR |
PRBB300V-35200 |
|
|
PLAT DE MAINTIEN |
PRBB302V-35400 |
|
|
VIS À TÊTE HEXAGONALE |
PRB002001-36110 |
|
|
ECROU HEXAGONAL |
PRB002003-3600N |
|
|
PLAQUE GUIDE (NYLON) |
PRBB230D-27219 |
|
|
PLAQUE GUIDE (NYLON) |
PRBB302D-27229 |
|
|
PLAQUE GUIDE (NYLON) |
PRBB302D-27139 |
|
|
O-RING |
PRB007001-0440P |
|
|
CAISSON DE TÊTE |
PRBB302V-55024 |
|
|
AMORTISSEUR DE TÊTE |
PRBB181V-27110 |
|
|
BOUCHON |
PRBB555H-12800 |
|
|
BOUCHON |
PRBB030V-12800 |
|
|
COUVERCLE FLEXIBLE |
PRBB302V-37600 |
|
|
BOUCHON |
PRBB301V-27034 |
|
|
VIS À TÊTE FRAISÉE |
PRB002005-12035 |
|
|
BOUCHON |
PRBB700B-12800 |
|
|
VIS À TÊTE CYLINDRIQUE À 6 PANS CREUX |
PRB002A02-14060 |
|
|
RONDELLE GROWER |
PRB002A08-14000 |
|
|
ECROU HEXAGONAL |
PRB002003-1400N |
|
|
FLEXIBLE |
PRB102002-AD28004 |
|
|
SUPPORT |
PRBB700V-28129 |
|
|
POMPE GRAISSAGE AUTOMATIQUE |
PRBH2-0100 |
|
|
CARTOUCHE DE GRAISSE |
PRBHC-C400 |
|
|
VOIR CAISSE - liste PF |
PRB007001-0110P |
|
|
UNION (RACCORD) |
PRB004015-10415 |
|
|
FLEXIBLE |
PRB100901-AA060055 |
|
|
RONDELLE GROWER |
PRB002A08-16000 |
|
|
VIS À TÊTE CYLINDRIQUE À 6 PANS CREUX |
PRB002A02-16090 |
|
|
KIT GRAISSAGE CENTRALISÉ |
PRBB300V-H2000400 |
|
