REF : QA13-M011
TYPE QA MECHANICAL QUICK HITCH
This equipment is no longer available for sale. We invite you to check the available spare parts listed below or contact our sales department at +33 3 24 33 64 32 or by email at commerce@arden-equipment.com.
Description
This equipment is no longer available for sale. We invite you to check the available spare parts listed below or contact our sales department at +33 3 24 33 64 32 or by email at commerce@arden-equipment.com.
More Information
Specification |
Details |
|---|---|
| SKU | QA13-M011 |
| Professions | Demolition, Earthmoving, Landscaping, Quarry, Railway, Recycling, Scrap |
| Option 1 | Handling holes |
| Option 2 | Mechanical |
| A (mm) | 290 |
| B (mm) | 45 |
| C (mm) | 224.5 |

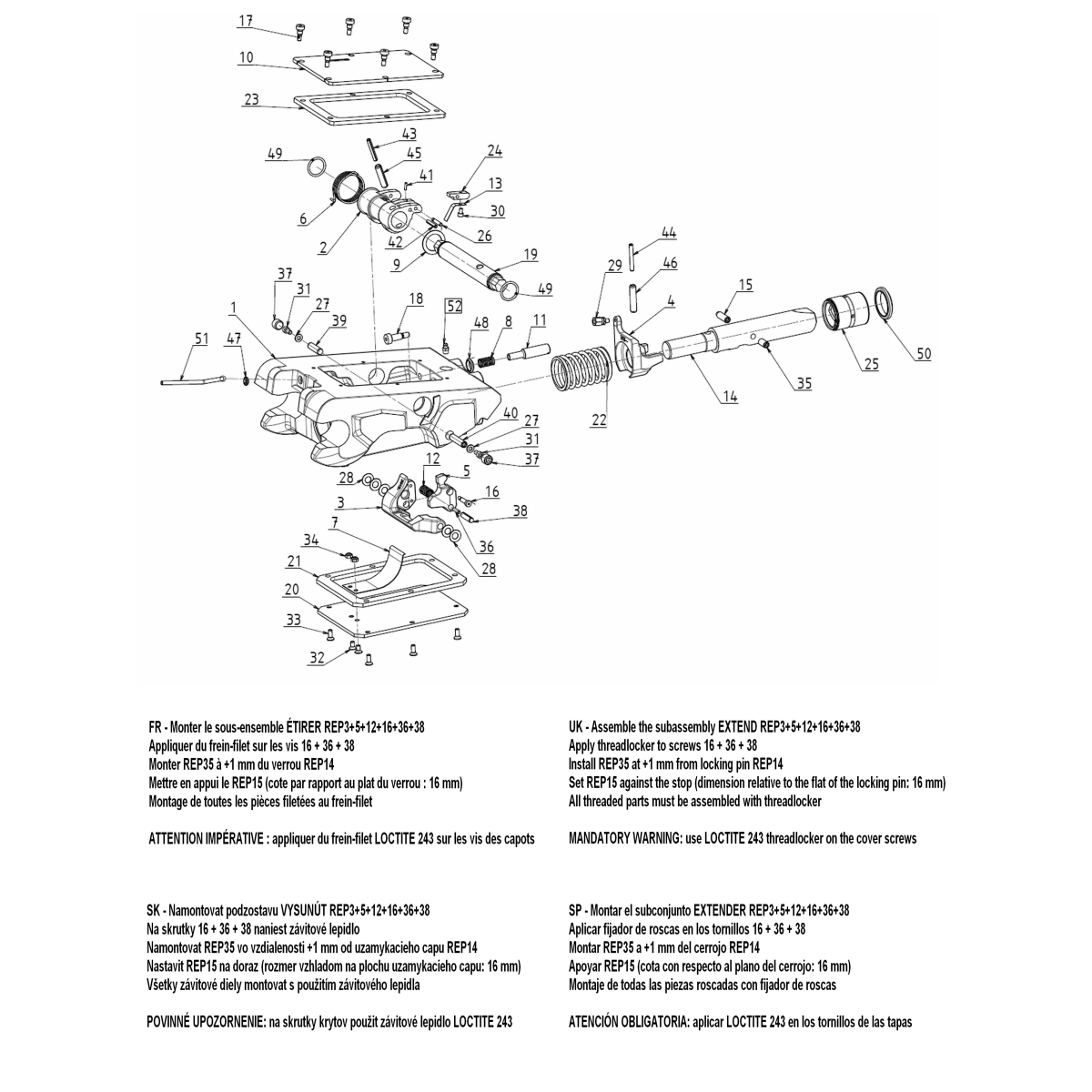

| Mounting / Tip | fiches\Eclates\Eclates En\En_Pieces_rechanges_QA13-M_revB.pdf |
| Weight (kg) | 52 |
| Minimum carrying weight (T) | 2,6 |
| Maximum carrying weight (T) | 6 |
Spare Parts
Please note that these PRs are associated with the latest model currently in production.
Thank you for checking your equipment with the configurator by entering your serial number.
See the configurator| N° | Name | Reference | Actions |
|---|---|---|---|
| Spare part | |||
ENSEMBLE EMBASE MOULEE QA13 MECANIQUE |
X3697M-ENS |
|
|
Fork |
X3686 | ||
STIRRUP |
X3615 | ||
Square |
X3687 | ||
trigger |
X3706 | ||
Spring |
X91257 | ||
Spring |
X91259 | ||
Spring |
X94758 | ||
Shim ring |
X91604-100 | ||
Hood |
X95143 | ||
SENSOR |
X94896 | ||
Spring |
X94226 | ||
Spring |
X94691 | ||
QA LOCK |
X94686 | ||
pressure screw without head |
X94813 | ||
centering screw |
X94673 | ||
Screw plug |
X92117 | ||
centering screw |
X94891 | ||
Fork pin |
X91277 | ||
lower cover |
X94307 | ||
SEAL |
X94308 | ||
Spring |
X91258 | ||
Cover seal |
X91425 | ||
push cam |
X28352-005 | ||
Bushing |
X80207 | ||
Pin |
X73938 | ||
Flat washer |
RP06 | ||
Disc springs |
RR10-020-05 | ||
Threaded adapter |
RAC30611 | ||
Socket head capscrew |
CHC05-008C08 | ||
Socket head capscrew |
CHC06-012C12 | ||
Hex socket Countersunk head sc |
FHC06-012C10 | ||
Hex socket Countersunk head sc |
FHC06-016C10 | ||
Self-locking nut |
HFR06 | ||
Stop screw |
HCPL10-020C10 | ||
Stop screw |
HCPL05-018C10 | ||
Stop screw |
HCPL16-012C10PF | ||
cylindrical pin |
GTC08-032 | ||
cylindrical pin |
GTC10-036 | ||
cylindrical pin |
GTC10-045 | ||
Spring-type straight pin |
GE03-012 | ||
Spring-type straight pin |
GE05-030 | ||
Spring-type straight pin |
GE06-040 | ||
Spring-type straight pin |
GE06-045 | ||
Spring-type straight pin |
GE10-040 | ||
Spring-type straight pin |
GE10-045 | ||
SEAL |
J30473 | ||
SEAL |
J30424 | ||
SEAL |
J30061 | ||
Wiper ring |
J30003 | ||
EXIT INDICATOR |
FLEXQA13M | ||
Grease nipple |
GM8 |
