REF : QA05AM048
TYPE QA MECHANICAL QUICK HITCH
This equipment is no longer available for sale. We invite you to check the available spare parts listed below or contact our sales department at +33 3 24 33 64 32 or by email at commerce@arden-equipment.com.
Description
This equipment is no longer available for sale. We invite you to check the available spare parts listed below or contact our sales department at +33 3 24 33 64 32 or by email at commerce@arden-equipment.com.
More Information
Specification |
Details |
|---|---|
| SKU | QA05AM048 |
| Professions | Demolition, Earthmoving, Landscaping, Quarry, Railway, Recycling, Scrap |

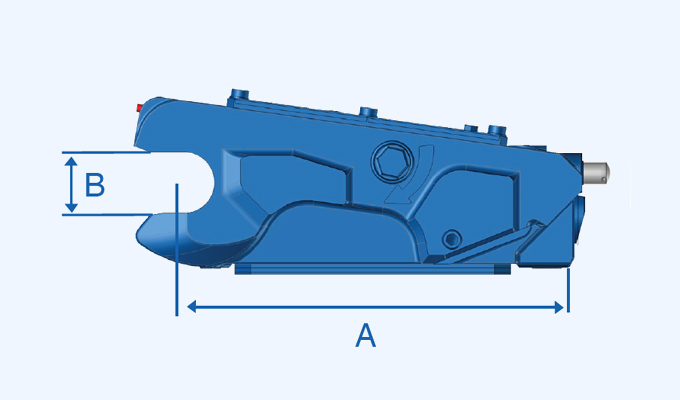

| A (mm) | 264 |
| B (mm) | 40 |

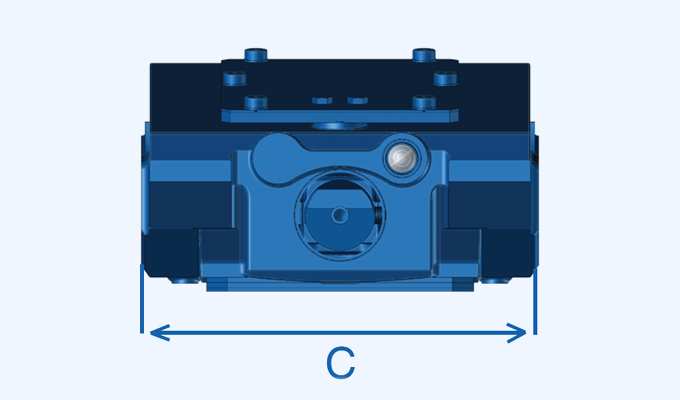

| C (mm) | 184 |
| Mounting / Tip | fiches\Eclates\Eclates En\En_Pieces_rechanges_QA05AM_revB.pdf |
| Weight (kg) | 24 |

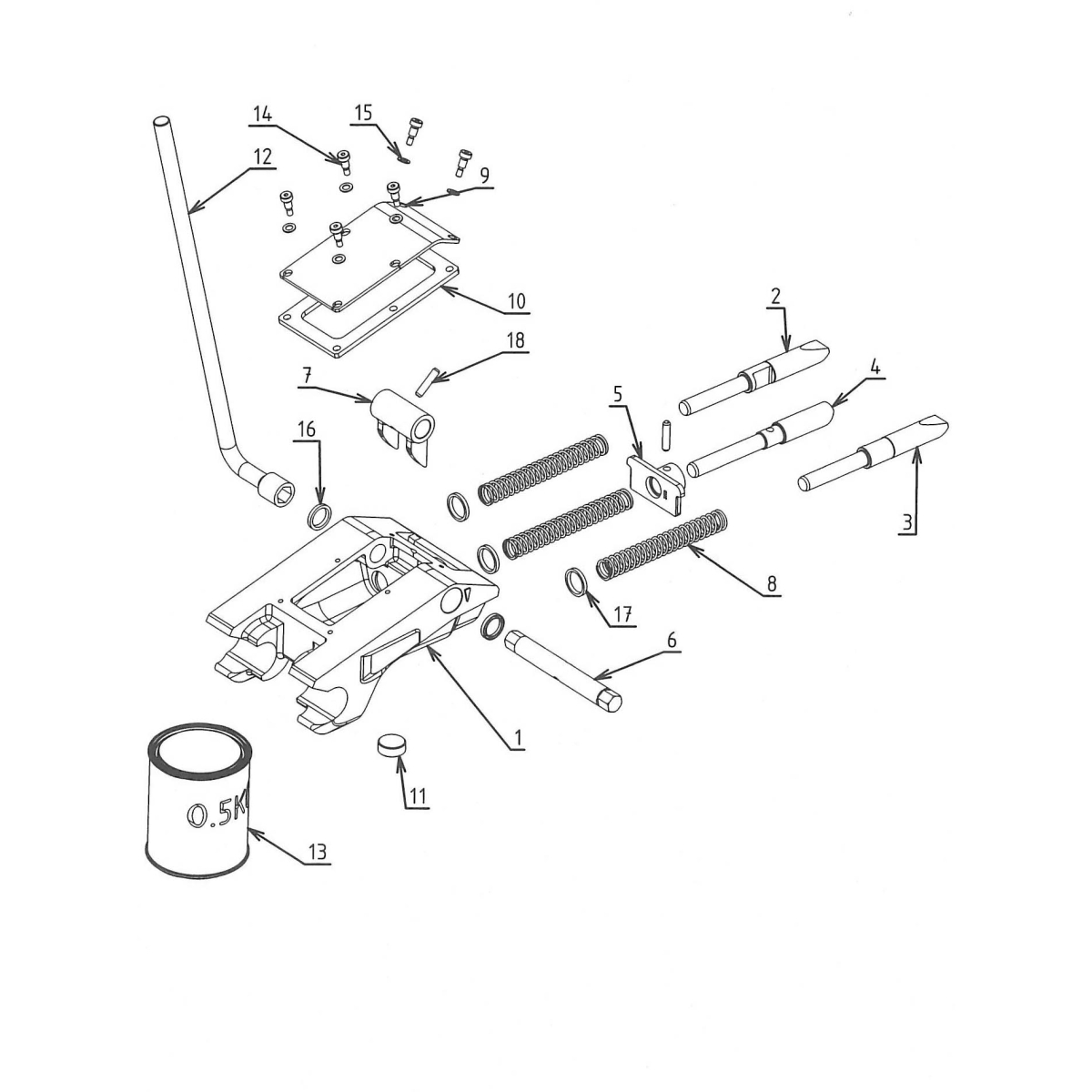

Spare Parts
Please note that these PRs are associated with the latest model currently in production.
Thank you for checking your equipment with the configurator by entering your serial number.
See the configurator| N° | Name | Reference | Actions |
|---|---|---|---|
| Spare part | |||
EMBASE QA05A USINEE (Moulé) |
X3076 |
|
|
Left lock |
X92411 | ||
Right lock |
X92419 | ||
Safety bolt |
X92412 | ||
CASTED STIRRUP QA05 |
X3109 | ||
Fork pin |
X92414 | ||
Fork |
X3110 | ||
Pressure spring |
X92416 | ||
COVER |
X92417 | ||
Cover seal |
X92418 | ||
Plug |
RAC30294 | ||
Key |
X92621 | ||
Special grease 0,5kg |
X92115-05 | ||
Screw plug |
X92117 | ||
Wedge |
X91316-100 | ||
SEAL |
J30376 | ||
SEAL |
J30377 | ||
Spring-type straight pin |
GE08-036 |
