REF : QA62AH026
TYPE QA HYDRAULIC QUICK HITCH
This equipment is no longer available for sale. We invite you to check the available spare parts listed below or contact our sales department at +33 3 24 33 64 32 or by email at commerce@arden-equipment.com.
Description
This equipment is no longer available for sale. We invite you to check the available spare parts listed below or contact our sales department at +33 3 24 33 64 32 or by email at commerce@arden-equipment.com.
More Information
Specification |
Details |
|---|---|
| SKU | QA62AH026 |
| Professions | Demolition, Earthmoving, Landscaping, Quarry, Railway, Recycling, Scrap |
| A (mm) | 561 |
| B (mm) | 100 |
| C (mm) | 579.5 |
| Working pressure (Mpa) | 35 |
| Flow min (l/min) | 20 |
| Maximum flow rate (l/min) | 30 |
| Mounting / Tip | fiches\Eclates\Eclates En\En_Pieces_rechanges_QA62AH_revA.pdf |
| Weight (kg) | 384 |

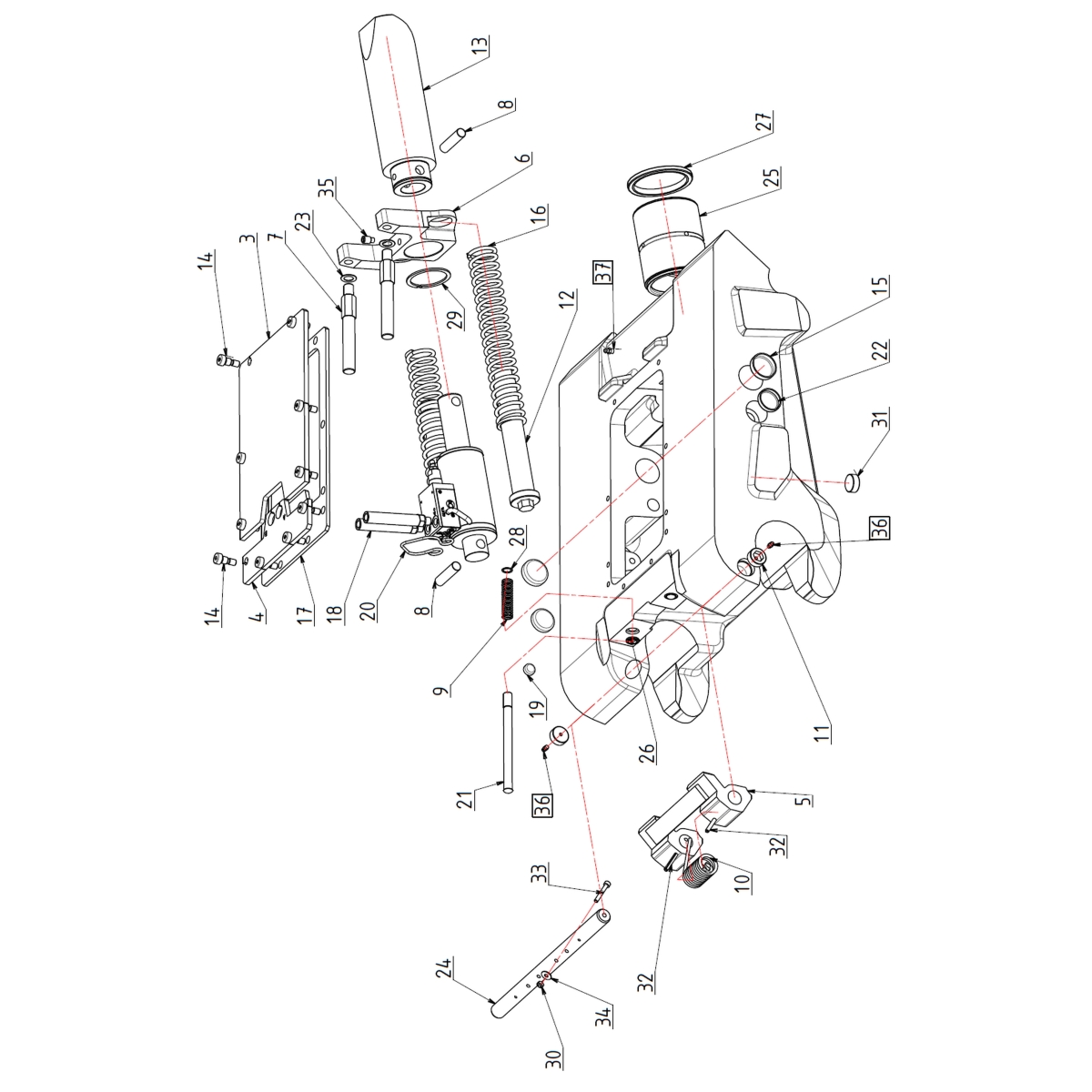

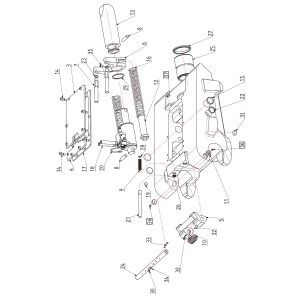

Spare Parts
Please note that these PRs are associated with the latest model currently in production.
Thank you for checking your equipment with the configurator by entering your serial number.
See the configurator| N° | Name | Reference | Actions |
|---|---|---|---|
| Spare part | |||
EMBASE QA52AH SECURITE AV |
X2973AH |
|
|
Cylinder |
V1321-RP | ||
COUVERCLE SUP ARR QA62AH-QA63H |
X95140-200 |
|
|
Cover |
X95140-100 |
|
|
PALETTE MS QA62AH-QA63H _ |
X95185 |
|
|
STIRRUP QA63H |
X95138 |
|
|
Spring rod |
X94877 | ||
Pin |
X92049 | ||
Spring |
X94867 | ||
Spring |
X94872 | ||
PLUG |
X94907 | ||
Spring rod |
X92019 | ||
QA LOCK |
X91984 | ||
Screw plug |
X92119 | ||
Plug hole diam 45 |
X92144 | ||
Spring |
X92031 | ||
SEAL |
X95139 | ||
Threaded adapter |
X94245-110 | ||
Plug |
X92139 | ||
Pin clamp |
X92102 | ||
PIN |
X94898 | ||
Plug |
X92143 | ||
Washer |
X94798-100 | ||
PIN |
X72977 | ||
Bushing |
X80226 | ||
SEAL |
J30475 | ||
Wiper ring |
J30074 | ||
Safety ring |
CIR014E | ||
Safety ring |
CIR065E | ||
Self-locking nut |
HFR06 | ||
Plug |
RAC30294 | ||
Spring-type straight pin |
GE06-050 | ||
Socket head capscrew |
CHC06-040C12 | ||
Flat washer |
RP06L | ||
Stop screw |
HCTL12-020C12 | ||
Grease nipple |
GM6 | ||
Grease nipple |
GM8 |
