REF : QA31-H002
TYPE QA HYDRAULIC QUICK HITCH
This equipment is no longer available for sale. We invite you to check the available spare parts listed below or contact our sales department at +33 3 24 33 64 32 or by email at commerce@arden-equipment.com.
Description
This equipment is no longer available for sale. We invite you to check the available spare parts listed below or contact our sales department at +33 3 24 33 64 32 or by email at commerce@arden-equipment.com.
More Information
Specification |
Details |
|---|---|
| SKU | QA31-H002 |
| Professions | Demolition, Earthmoving, Landscaping, Quarry, Railway, Recycling, Scrap |
| Working pressure (Mpa) | 35 |
| Flow min (l/min) | 20 |
| Maximum flow rate (l/min) | 30 |

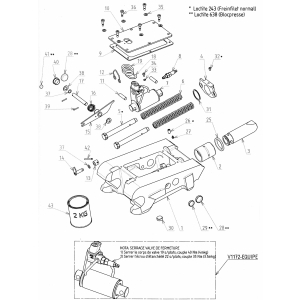

Spare Parts
Please note that these PRs are associated with the latest model currently in production.
Thank you for checking your equipment with the configurator by entering your serial number.
See the configurator| N° | Name | Reference | Actions |
|---|---|---|---|
| Spare part | |||
EMBASE QA31H FINIE (Moulé) |
X3025 |
|
|
Bushing |
X80198 | ||
QA LOCK |
X91981 | ||
Spring stirrup |
X92065 | ||
Spring rod |
X92018 | ||
Spring |
X92030 | ||
VERIN 036X055C059 QA31/41H |
V1172 |
|
|
Valve |
CLAP30009 | ||
Cover seal |
X91754 | ||
Cover |
X92036 | ||
Pin |
X92048 | ||
Pin clamp |
X92101 | ||
Safety tube |
X92084 | ||
Safety indicator |
X92088 | ||
Reversing safety indicator |
X92078 | ||
Spring |
X92104 | ||
NPU !! AXE RENVOI QA31H-QA41H |
X92094 |
|
|
Sheet / Plate |
X92145 | ||
Seal / Packing |
X92367 | ||
Wiper ring |
J30068 | ||
Grease nipple |
GM8 | ||
Plug |
X92143 | ||
NPU - REMPLACE PAR 92141 DS NOMENCLATURES -BOUCHON TROU DIA33 |
X92142 |
|
|
Plug |
RAC30294 | ||
Safety ring |
CIR055E | ||
Stop screw |
HCTL10-016C12 | ||
Seal / Packing |
J30088 | ||
Socket head capscrew |
CHC08-010C10TR | ||
Wedge |
X91763-100 | ||
Screw plug |
X92118 | ||
O-Ring |
J30071 | ||
Flat washer |
RP16 | ||
Spring-type straight pin |
GE04-030 | ||
Plastic plug |
X91760 | ||
Plug |
X92139 | ||
Spring-type straight pin |
GE07-090 | ||
Grease Box 2kg |
X92115-2 | ||
SEAL |
X92130 | ||
Seal Kit |
V1172-PJ |
