REF : AT030QA05H-024
ARDEN TILT
This equipment is no longer available for sale. We invite you to check the available spare parts listed below or contact our sales department at +33 3 24 33 64 32 or by email at commerce@arden-equipment.com.
Description
This equipment is no longer available for sale. We invite you to check the available spare parts listed below or contact our sales department at +33 3 24 33 64 32 or by email at commerce@arden-equipment.com.
More Information
| Specification | Details |
|---|---|
| SKU | AT030QA05H-024 |
| Professions | Earthmoving, Landscaping, Railway |
| Option 1 | Handling holes |
| Option 2 | Hydraulic / QA05H |

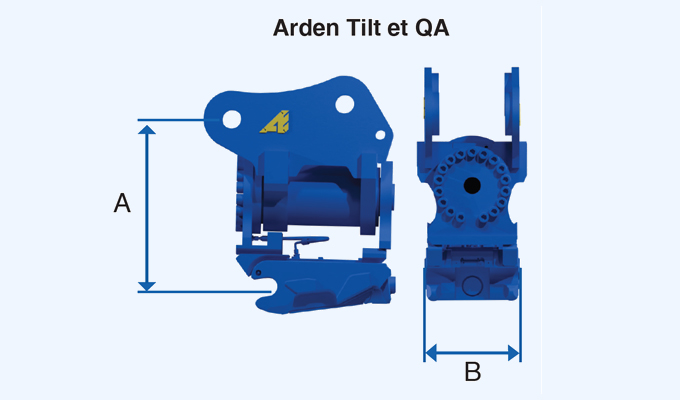

| A (mm) | 330 |
| C (mm) | 450 |
| Working pressure (Mpa) | 21 |
| Flow min (l/min) | 5 |
| Maximum flow rate (l/min) | 10 |
| Rotation flow rate max (L/min) | 19 |
| Rotation pressure (MPa) | 21 |
| Rotation flow rate min (gal/min) | 6 |
| Angle of inclination in degrees | 180 |
| Weight (kg) | 80 |
| Minimum carrying weight (T) | 2 |
| Maximum carrying weight (T) | 3 |
