REF : S1702BR02-BAR-AJ
DEMOLITION AND SORTING GRAB
This equipment is no longer available for sale. We invite you to check the available spare parts listed below or contact our sales department at +33 3 24 33 64 32 or by email at commerce@arden-equipment.com.
Description
This equipment is no longer available for sale. We invite you to check the available spare parts listed below or contact our sales department at +33 3 24 33 64 32 or by email at commerce@arden-equipment.com.
More Information
Specification |
Details |
|---|---|
| SKU | S1702BR02-BAR-AJ |
| Professions | Demolition, Earthmoving, Landscaping, Quarry, Recycling, Scrap |
| Compatible top plate(s) | PV32 |

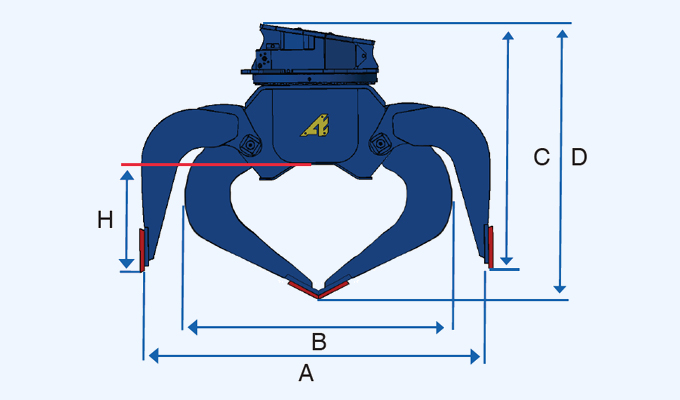

| A (mm) | 2100 |
| B (mm) | 1460 |
| C (mm) | 1510 |
| D (mm) | 1690 |
| L (mm) | 1120 |
| Working pressure (Mpa) | 35 |
| Flow min (l/min) | 55 |
| Maximum flow rate (l/min) | 110 |
| Rotation flow rate max (L/min) | 35 |
| Rotation pressure (MPa) | 14 |
| Rotation flow rate min (gal/min) | 24 |
| Mounting / Tip | fiches\Eclates\Eclates En\En_Pieces_rechanges_S1702B_STD_revA.pdf |
| H (mm) | 625 |
| Minimum carrying weight (T) | 22 |
| Maximum carrying weight (T) | 27 |
Screed compatibility
Identify here the screeds compatibles with this equipment.
See the screedsSpare Parts
Please note that these PRs are associated with the latest model currently in production.
Thank you for checking your equipment with the configurator by entering your serial number.
See the configurator| N° | Name | Reference | Actions |
|---|---|---|---|
| Spare part | |||
Steering link |
X16550-200 | ||
Cylinder |
V1305 | ||
Bushing |
X80257 | ||
Bushing |
X80258 | ||
Pin |
X72300 | ||
Pin |
X72301 | ||
Hose |
FLEX3029 | ||
Threaded adapter |
RAC30174 | ||
Threaded adapter |
RAC30285 | ||
T-Threaded adapter |
RAC30315 | ||
Connection |
RAC30338 | ||
Packing ring |
J30027 | ||
Hose |
FLEX3721 | ||
Socket head capscrew |
CHC10-040C12 | ||
Hex head capscrew |
HM20-110C10 | ||
Lock washer |
RZ10 | ||
Lock washer |
RZ20 | ||
Flat washer |
RP32-070-03 | ||
Nut |
H20C10 | ||
Self-locking nut |
HFR30 | ||
Threaded adapter |
RAC30316 | ||
T-Threaded adapter |
RAC30314 | ||
Connection |
RAC30347 | ||
OPT. PULVERISATION EAU S1702 ET S1402 |
KIT-PE-S1702A |
|
|
Rotation 40t 1 moteur |
RAE0401-1DE01 |
|
|
Rotation 40t 2 moteurs |
RAE0401-2DE01 |
|
|
BATI PINCES A TRIER S1702B_ |
X22109-100 |
|
|
BATI S1702-BCR |
X29931-100 |
|
|
Bâti |
X22109-100-AJ |
|
|
Grease nipple |
GR1/8 | ||
Grease nipple |
GM8 | ||
Seal Kit |
V1226-PJ | ||
PINCE A S1702ABAR (figé par 6) |
X31261-100 |
|
|
PPINCE B S1702ABAR (figé par 6) |
X31261-200 |
|
|
PINCE A S1702AFAP |
X31261-300 |
|
|
PINCE B S1702AFAP |
X31261-400 |
|
|
Pince A S1702AROC |
X31261-500 |
|
|
Pince B S1702AROC |
X31261-600 |
|
|
C-LAME NU S1702 |
CLNU-95080 |
|
|
Hex socket Countersunk head sc |
FHC20-080C10 | ||
Self-locking nut |
HFR20C10M | ||
Flat washer |
RP20M | ||
BLADE SET WITH NUTS AND BOLTS |
CLR-95080 |
