REF : S0803-R03-RDP-01

DEMOLITION AND SORTING GRAB 80cm

This equipment is no longer available for sale. We invite you to check the available spare parts listed below or contact our sales department at +33 3 24 33 64 32 or by email at commerce@arden-equipment.com.
Login

Description
This equipment is no longer available for sale. We invite you to check the available spare parts listed below or contact our sales department at +33 3 24 33 64 32 or by email at commerce@arden-equipment.com.

More Information

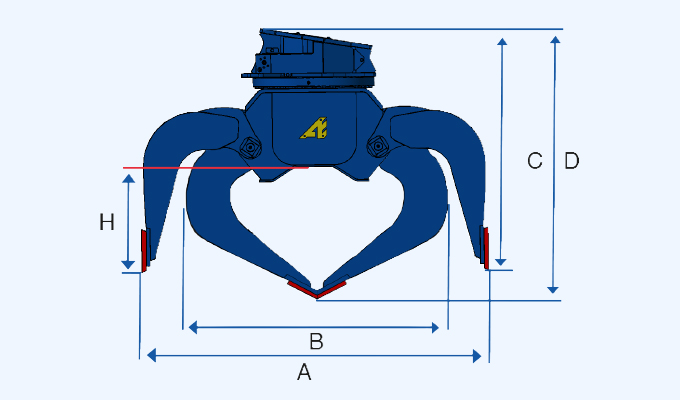

Technical Diagram 1

Specification

Details
SKU S0803-R03-RDP-01
Professions Demolition, Earthmoving, Landscaping, Quarry, Recycling, Scrap
Compatible top plate(s) PV32
Working pressure (Mpa) 35
Flow min (l/min) 30
Maximum flow rate (l/min) 65
Rotation flow rate max (L/min) 20
Rotation pressure (MPa) 14
Rotation flow rate min (gal/min) 14
Weight (kg) 945
Minimum carrying weight (T) 11
Maximum carrying weight (T) 15
Width (cm) 80

Screed compatibility

Identify here the screeds compatibles with this equipment.

See the screeds
