REF : S250GAR01-FAP
MULTI PURPOSE GRAB MINI BLUE
This equipment is no longer available for sale. We invite you to check the available spare parts listed below or contact our sales department at +33 3 24 33 64 32 or by email at commerce@arden-equipment.com.
Description
This equipment is no longer available for sale. We invite you to check the available spare parts listed below or contact our sales department at +33 3 24 33 64 32 or by email at commerce@arden-equipment.com.
More Information
| Specification | Details |
|---|---|
| SKU | S250GAR01-FAP |
| Professions | Earthmoving, Handling, Landscaping |
| Compatible top plate(s) | PATD06B |

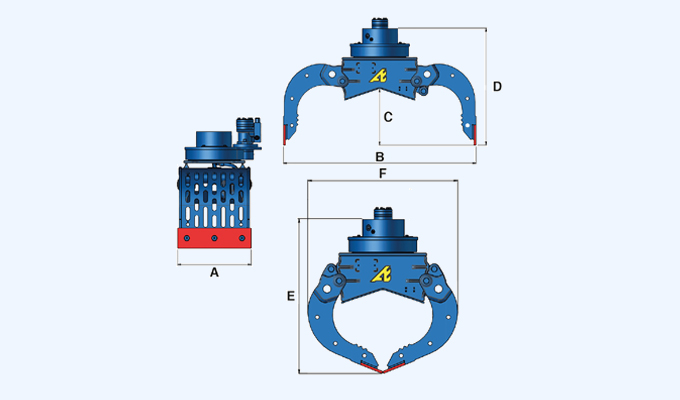

| A (in) | 17.32 |
| B (in) | 45.28 |
| C (in) | 13.07 |
| D (in) | 27.36 |
| E (in) | 30.91 |
| F (in) | 30.08 |
| Working pressure (psi) | 3626 |
| Flow min (gal/min) | 3 |
| Maximum flow rate (gal/min) | 5 |
| Rotation flow rate max (gpm) | 2 |
| Rotation pressure (psi) | 1450 |
| Rotation flow rate min (gal/min) | 2 |
| Weight (lbs) | 496.13 |
| Minimum carrying weight (lbs) | 6615 |
| Maximum carrying weight (lbs) | 13230 |
