REF : S2301AR01-ROC
DEMOLITION AND SORTING GRAB
This equipment is no longer available for sale. We invite you to check the available spare parts listed below or contact our sales department at +33 3 24 33 64 32 or by email at commerce@arden-equipment.com.
Description
This equipment is no longer available for sale. We invite you to check the available spare parts listed below or contact our sales department at +33 3 24 33 64 32 or by email at commerce@arden-equipment.com.
More Information
Specification |
Details |
|---|---|
| SKU | S2301AR01-ROC |
| Professions | Demolition, Earthmoving, Landscaping, Quarry, Recycling, Scrap |
| Compatible top plate(s) | PV42 |

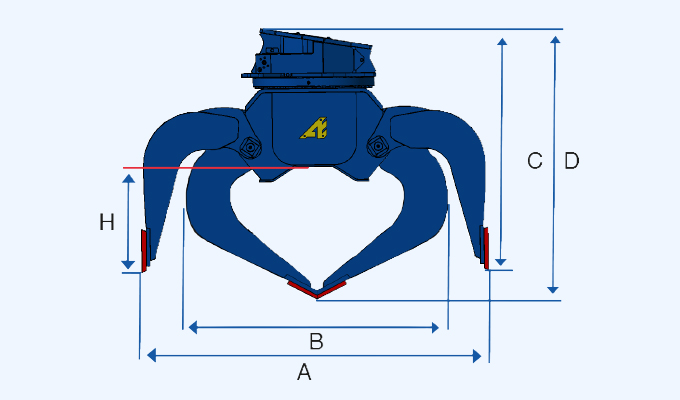

| A (in) | 89.37 |
| B (in) | 63.94 |
| C (in) | 63.11 |
| D (in) | 70.55 |
| L (in) | 47.24 |
| Working pressure (psi) | 5076 |
| Flow min (gal/min) | 25 |
| Maximum flow rate (gal/min) | 44 |
| Rotation flow rate max (gpm) | 11 |
| Rotation pressure (psi) | 2031 |
| Rotation flow rate min (gal/min) | 7 |
| Mounting / Tip | fiches\Eclates\Eclates En\En_Pieces_rechanges_S2301A_STD_revA.pdf |
| H (in) | 27.13 |
| Weight (lbs) | 4884.08 |
| Minimum carrying weight (lbs) | 61740 |
| Maximum carrying weight (lbs) | 83790 |
Screed compatibility
Identify here the screeds compatibles with this equipment.
See the screedsSpare Parts
Please note that these PRs are associated with the latest model currently in production.
Thank you for checking your equipment with the configurator by entering your serial number.
See the configurator| N° | Name | Reference | Actions |
|---|---|---|---|
| Spare part | |||
Threaded adapter |
RAC30222 | ||
Hose |
FLEX3010 | ||
Hose |
FLEX3248 | ||
Threaded adapter |
RAC30159 | ||
Threaded adapter |
RAC30278 | ||
Hose |
FLEX2051 | ||
water nozzle |
RAC34515 | ||
Steering link |
X20515-400 | ||
Cylinder |
V1308 | ||
Pin |
X71703 | ||
Pin |
X72157 | ||
Pin |
X72158 | ||
Pin |
X72159 | ||
Bushing |
X80002 | ||
Bushing |
X80051 | ||
Hose |
FLEX3647 | ||
Packing ring |
J30027 | ||
Threaded adapter |
RAC30174 | ||
Plug |
RAC30177 | ||
Threaded adapter |
RAC30245 | ||
Threaded adapter |
RAC30285 | ||
T-Threaded adapter |
RAC30315 | ||
Connection |
RAC30338 | ||
Socket head capscrew |
CHC10-040C12 | ||
Hex head capscrew |
HM20-110C10 | ||
Nut |
H20C10 | ||
Self-locking nut |
HFR39 | ||
Flat washer |
RP42-095-06 | ||
Lock washer |
RZ10 | ||
Lock washer |
RZ20 | ||
Grease nipple |
GM8 | ||
Hex socket Countersunk head sc |
FHC20-090C10 | ||
Flat washer |
RP20M | ||
Self-locking nut |
HFR20C10M |
