REF : S1402BR01-BAR
DEMOLITION AND SORTING GRAB
This equipment is no longer available for sale. We invite you to check the available spare parts listed below or contact our sales department at +33 3 24 33 64 32 or by email at commerce@arden-equipment.com.
Description
This equipment is no longer available for sale. We invite you to check the available spare parts listed below or contact our sales department at +33 3 24 33 64 32 or by email at commerce@arden-equipment.com.
More Information
Specification |
Details |
|---|---|
| SKU | S1402BR01-BAR |
| Professions | Demolition, Earthmoving, Landscaping, Quarry, Recycling, Scrap |
| Compatible top plate(s) | PV32 |

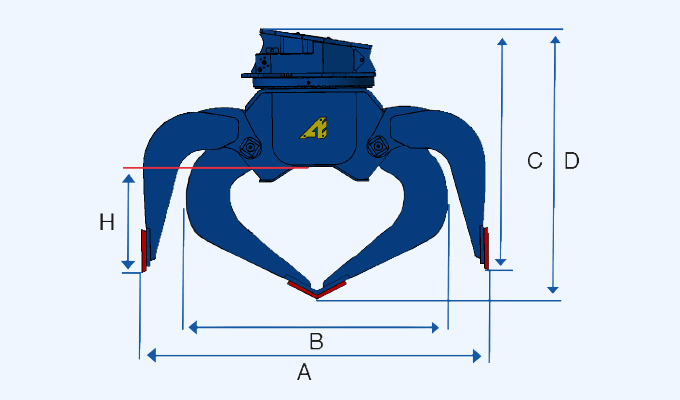

| A (in) | 78.74 |
| B (in) | 56.3 |
| C (in) | 55.31 |
| D (in) | 61.42 |
| L (in) | 39.37 |
| Working pressure (psi) | 5076 |
| Flow min (gal/min) | 15 |
| Maximum flow rate (gal/min) | 29 |
| Rotation flow rate max (gpm) | 5 |
| Rotation pressure (psi) | 2031 |
| Rotation flow rate min (gal/min) | 4 |
| H (in) | 24.25 |
| Weight (lbs) | 2723.18 |
| Minimum carrying weight (lbs) | 39690 |
| Maximum carrying weight (lbs) | 46305 |
Screed compatibility
Identify here the screeds compatibles with this equipment.
See the screeds
Files
Spare Parts
Please note that these PRs are associated with the latest model currently in production.
Thank you for checking your equipment with the configurator by entering your serial number.
See the configurator| N° | Name | Reference | Actions |
|---|---|---|---|
| Spare part | |||
Steering link |
X16550-200 | ||
Pin |
X71453 | ||
Pin |
X71454 | ||
Bushing |
X80257 | ||
Bushing |
X80258 | ||
Hose |
FLEX3720 | ||
Hose |
FLEX3730 | ||
Packing ring |
J30027 | ||
Threaded adapter |
RAC30174 | ||
Threaded adapter |
RAC30285 | ||
T-Threaded adapter |
RAC30314 | ||
T-Threaded adapter |
RAC30315 | ||
Threaded adapter |
RAC30316 | ||
Connection |
RAC30338 | ||
Connection |
RAC30347 | ||
Socket head capscrew |
CHC10-040C12 | ||
Socket head capscrew |
CHC20-085C12 | ||
Socket head capscrew |
CHC20-110C12 | ||
Nut |
H20C10 | ||
Self-locking nut |
HFR30 | ||
Flat washer |
RP32-070-05 | ||
Lock washer |
RZ10 | ||
Lock washer |
RZ20 | ||
OPT. PULVERISATION EAU S1702 ET S1402 |
KIT-PE-S1702A |
|
|
ROTATION 30T 1MOTEUR |
RAE0301-1DE00 |
|
|
Rotation 30 t 2 moteur |
RAE0301-2DE00 |
|
|
BATI PINCES S1402HD |
X24468-100 |
|
|
Renforts de bâti S1402-BCR |
X28978-100 |
|
|
BATI PINCES A TRIER S1402 ARDEN JET |
X24468-100AJ |
|
|
Cylinder |
V1305 | ||
Cylinder |
V1208A | ||
Grease nipple |
GM8 | ||
Grease nipple |
GR1/8 | ||
Seal Kit |
V1226-PJ | ||
Pince A S1402ABAR ( Figé x8 )_ |
X31240-100 |
|
|
Pince B S1402ABAR ( Figé x8 )_ |
X31240-200 |
|
|
Pince A S1402AFAP |
X31240-300 |
|
|
Pince B S1402AFAP |
X31240-400 |
|
|
Pince A S1402AROC |
X31240-500 |
|
|
Pince B S1402AROC |
X31240-600 |
|
|
C-LAME NU S1402 |
CLNU-95079 |
|
|
Hex socket Countersunk head sc |
FHC20-070C10 | ||
Self-locking nut |
HFR20C10M | ||
Flat washer |
RP20M | ||
BLADE SET WITH NUTS AND BOLTS |
CLR-95079 |
