REF : S0803AR01-BAR
DEMOLITION AND SORTING GRAB
This equipment is no longer available for sale. We invite you to check the available spare parts listed below or contact our sales department at +33 3 24 33 64 32 or by email at commerce@arden-equipment.com.
Description
This equipment is no longer available for sale. We invite you to check the available spare parts listed below or contact our sales department at +33 3 24 33 64 32 or by email at commerce@arden-equipment.com.
More Information
| Specification | Details |
|---|---|
| SKU | S0803AR01-BAR |
| Professions | Demolition, Earthmoving, Landscaping, Quarry, Recycling, Scrap |
| Compatible top plate(s) | PV32 |

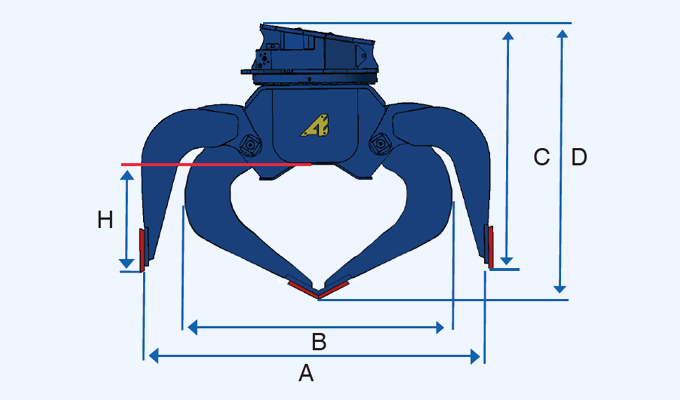

| A (in) | 67.32 |
| B (in) | 48.62 |
| C (in) | 49.29 |
| D (in) | 53.82 |
| L (in) | 31.5 |
| Working pressure (psi) | 5076 |
| Flow min (gal/min) | 8 |
| Maximum flow rate (gal/min) | 17 |
| Rotation flow rate max (gpm) | 5 |
| Rotation pressure (psi) | 2031 |
| Rotation flow rate min (gal/min) | 4 |
| H (in) | 21.26 |
| Weight (lbs) | 1686.83 |
| Minimum carrying weight (lbs) | 24255 |
| Maximum carrying weight (lbs) | 33075 |
Screed compatibility
Identify here the screeds compatibles with this equipment.
See the screedsSpare Parts
Please note that these PRs are associated with the latest model currently in production.
Thank you for checking your equipment with the configurator by entering your serial number.
See the configurator| N° | Name | Reference | Actions |
|---|---|---|---|
| Spare part | |||
| ROTATION 25T 1 MOTEUR (ROT35-2) | RAE0251-1DE01 |
|
|
| Steering link | X27932-400 | ||
| Cylinder | V1212A | ||
| Cylinder | V1312 | ||
| Pin | X71453 | ||
| Pin | X72157 | ||
| Pin | X72324 | ||
| Pin | X72325 | ||
| Bushing | X80258 | ||
| Bushing | X80498 | ||
| Bushing | X80500 | ||
| SEAL | J30036 | ||
| SEAL | J30145 | ||
| Hose | FLEX3029 | ||
| Plug | RAC30095 | ||
| Threaded adapter | RAC30316 | ||
| Threaded adapter | RAC30318 | ||
| Socket head capscrew | CHC10-030C12 | ||
| Socket head capscrew | CHC16-045C12 | ||
| Self-locking nut | HFR30 | ||
| Self-locking nut | HFR39 | ||
| Flat washer | RP32-070-05 | ||
| Flat washer | RP42-095-06 | ||
| Lock washer | RZ10 | ||
| Lock washer | RZ16 | ||
| Grease nipple | GM8 | ||
| Grease nipple | GR1/8 | ||
| Seal Kit | V1174-PJ | ||
| Hex socket Countersunk head sc | FHC16-060C10 | ||
| Self-locking nut | HFR16C10M | ||
| Flat washer | RP16M | ||
| BLADE SET WITH NUTS AND BOLTS | CLR-95077 |
