REF : S0603-R01-FAP
DEMOLITION AND SORTING GRAB
This equipment is no longer available for sale. We invite you to check the available spare parts listed below or contact our sales department at +33 3 24 33 64 32 or by email at commerce@arden-equipment.com.
Description
This equipment is no longer available for sale. We invite you to check the available spare parts listed below or contact our sales department at +33 3 24 33 64 32 or by email at commerce@arden-equipment.com.
More Information
| Specification | Details |
|---|---|
| SKU | S0603-R01-FAP |
| Professions | Demolition, Earthmoving, Landscaping, Quarry, Recycling, Scrap |
| A (in) | 59.06 |
| B (in) | 43.31 |
| C (in) | 40.16 |
| D (in) | 42.52 |
| L (in) | 25.59 |
| Working pressure (psi) | 5512 |
| Flow min (gal/min) | 5 |
| Maximum flow rate (gal/min) | 11 |
| Rotation flow rate max (gpm) | 4 |
| Rotation pressure (psi) | 1450 |
| Rotation flow rate min (gal/min) | 3 |
| Weight (lbs) | 1186.29 |

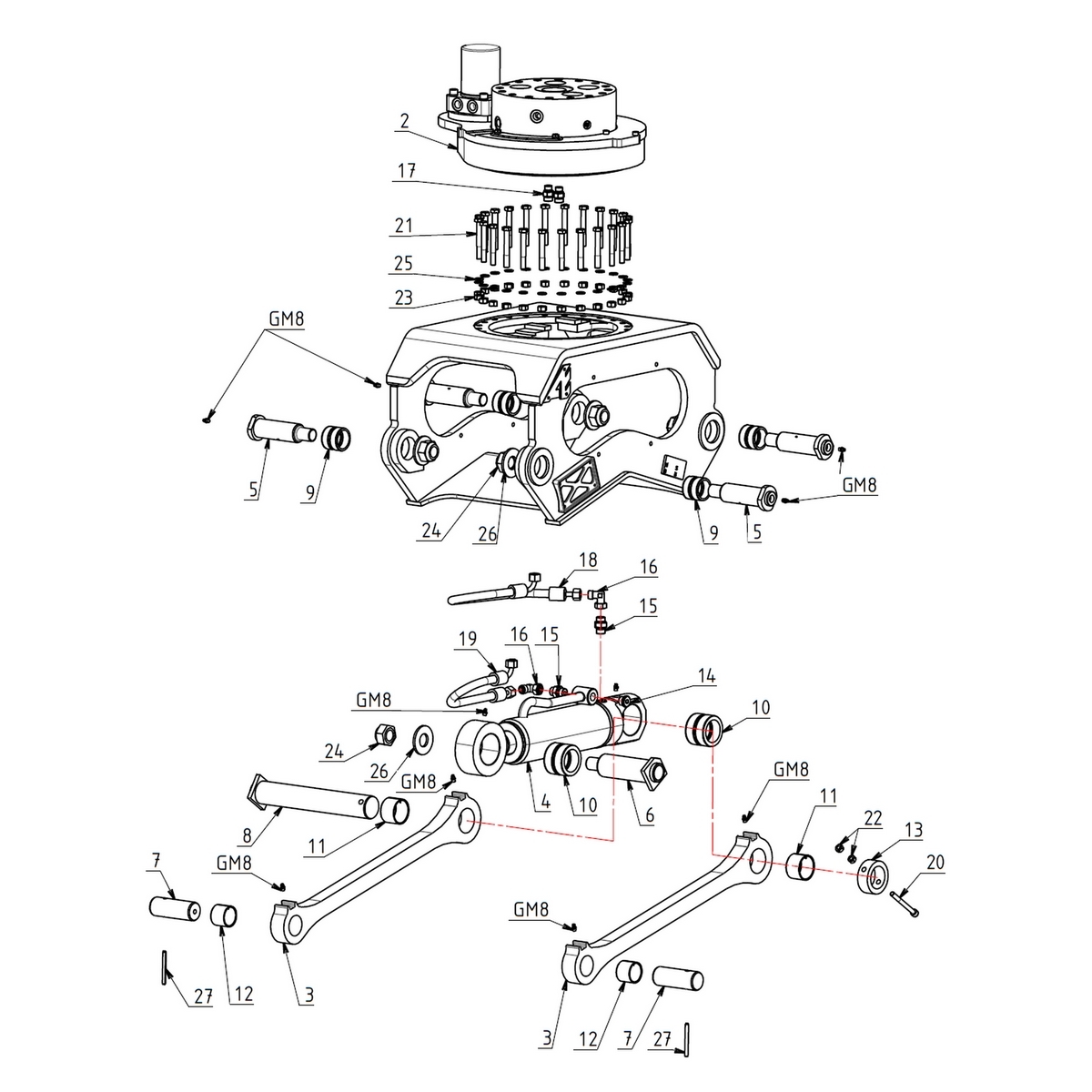

Spare Parts
Please note that these PRs are associated with the latest model currently in production.
Thank you for checking your equipment with the configurator by entering your serial number.
See the configurator| N° | Name | Reference | Actions |
|---|---|---|---|
| Spare part | |||
| ENSEMBLE ROTATION | RAE0151-1DE01 |
|
|
| Hex head capscrew | HM12-090C10 | ||
| Lock washer | RZ12 | ||
| nut | H12C10 | ||
| Threaded adapter | RAC30320 | ||
| Pince B S0603+CLB | X26078-300 |
|
|
| Pince B S0603-B-ROC | X26390-300 |
|
|
| Pince B S0603 TYPE GRILLE | X26503-300 |
|
|
| Hose | FLEX3188 | ||
| Threaded adapter | RAC30316 | ||
| Threaded adapter | RAC30318 | ||
| Cylinder | V1306 | ||
| Bushing | X80257 | ||
| Nut | H10C10 | ||
| Pin lock | X91445 | ||
| Socket head capscrew | CHC10-100C12 | ||
| Pin | X72551 | ||
| Steering link | X24195-400 | ||
| Pin | X72542 | ||
| Spring-type straight pin | GE08-080 | ||
| Bushing | X80365 | ||
| Pince A S0603+CLB | X26078-200 |
|
|
| Pince A S0603-A-ROC | X26390-200 |
|
|
| Pince A S0603 TYPE GRILLE | X26503-200 |
|
|
| Flat washer | RP32-070-05 | ||
| Self-locking nut | HFR30 | ||
| Pin | X71361 | ||
| Bushing | X80255 | ||
| Bati S0603_ | X24195-100 |
|
|
| Pin | X71453 | ||
| Bushing | X80364 | ||
| Packing ring | J30026 | ||
| Adapter / screwed joint | RAC32240 | ||
| Hex socket Countersunk head sc | FHC16-050C10 | ||
| C-LAME NU PINCES S0603A-CLB_ | CLNU-26078 |
|
|
| Lock washer | RW16 | ||
| Nut | H16C10 | ||
| Grease nipple | GM8 | ||
| BLADE SET WITH NUTS AND BOLTS | CL-26078 | ||
| Seal Kit | V1226-PJ |
