REF : S1702CR01-BAR
DEMOLITION AND SORTING GRAB_RIBS
This equipment is no longer available for sale. We invite you to check the available spare parts listed below or contact our sales department at +33 3 24 33 64 32 or by email at commerce@arden-equipment.com.
Description
This equipment is no longer available for sale. We invite you to check the available spare parts listed below or contact our sales department at +33 3 24 33 64 32 or by email at commerce@arden-equipment.com.
More Information
Specification |
Details |
|---|---|
| SKU | S1702CR01-BAR |
| Professions | Earthmoving |
| Option 1 | Ribs shells |
| Option 2 | 1 motor |
| Compatible top plate(s) | PV32 |

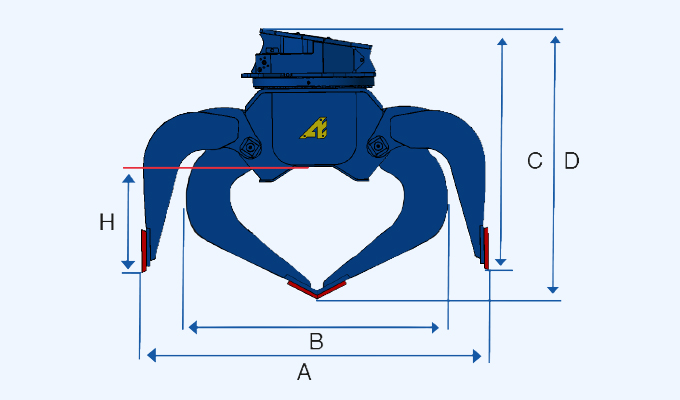

| A (in) | 82.68 |
| B (in) | 57.48 |
| C (in) | 59.45 |
| D (in) | 66.54 |
| L (in) | 44.09 |
| Working pressure (psi) | 5076 |
| Flow min (gal/min) | 15 |
| Maximum flow rate (gal/min) | 29 |
| Rotation flow rate max (gpm) | 5 |
| Rotation pressure (psi) | 2031 |
| Rotation flow rate min (gal/min) | 4 |
| H (in) | 24.61 |
| Weight (lbs) | 3417.75 |
| Minimum carrying weight (lbs) | 48510 |
| Maximum carrying weight (lbs) | 59535 |
Screed compatibility
Identify here the screeds compatibles with this equipment.
See the screeds
