REF : AB1353DA-AJ
HYDRAULIC BREAKER AB1353DA
This equipment is no longer available for sale. We invite you to check the available spare parts listed below or contact our sales department at +33 3 24 33 64 32 or by email at commerce@arden-equipment.com.
Description
This equipment is no longer available for sale. We invite you to check the available spare parts listed below or contact our sales department at +33 3 24 33 64 32 or by email at commerce@arden-equipment.com.
More Information
Specification |
Details |
|---|---|
| SKU | AB1353DA-AJ |
| Professions | Demolition, Earthmoving, Landscaping |
| Working pressure (psi) | 3046 |
| Flow min (gal/min) | 25 |
| Maximum flow rate (gal/min) | 35 |
| Noise level dB(A) | 123 |

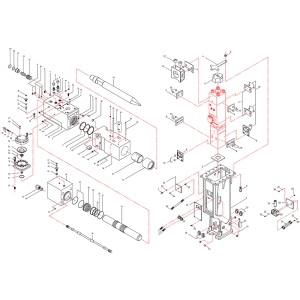

| Mounting / Tip | fiches\Eclates\Eclates En\En_Pieces_rechanges_AB1353DA_revA.pdf |
| Weight (lbs) | 3197.25 |
Spare Parts
Please note that these PRs are associated with the latest model currently in production.
Thank you for checking your equipment with the configurator by entering your serial number.
See the configurator| N° | Name | Reference | Actions |
|---|---|---|---|
| Spare part | |||
BLOC CENTRAL |
PRBB182B-11104 |
|
|
JOINT |
PRB007002-12500 |
|
|
JOINT EN U À LÈVRES |
PRB007004-12500 |
|
|
JOINT COMPOSITE |
PRB007006-12500 |
|
|
RACCORD |
PRBB180-11800 |
|
|
BOUCHON |
PRBB180-11900 |
|
|
VOIR CAISSE - liste PF |
PRB007001-0290P |
|
|
BOUCHON 6 PANS |
PRB004012-10000 |
|
|
VOIR CAISSE - liste PF |
PRB004012-30800 |
|
|
BOUCHON |
PRB004012-10400 |
|
|
VOIR CAISSE - liste PF |
PRB007001-0110P |
|
|
VOIR CAISSE - liste PF |
PRB007001-0240P |
|
|
GOUPILLE |
PRBB100-11110 |
|
|
PISTON |
PRBB182B-11200 |
|
|
BAGUE BLOC CENTRAL |
PRBB180V-11301 |
|
|
JOINT |
PRB007005-12350 |
|
|
JOINT COMPOSITE |
PRB007007-12350 |
|
|
JOINT TORIQUE |
PRB007001-1500G |
|
|
NEZ MARTEAU |
PRBB182B-12102 |
|
|
BAGUE |
PRBB182V-12401 |
|
|
BAGUE FOURREAU |
PRBB180V-12301 |
|
|
Pin |
PRBB151V-12650 | ||
Rubber plug |
PRBB030-12620 | ||
RETAINER PIN |
PRBB182B-12600 | ||
BOUCHON |
PRB004014-10400 |
|
|
BOUCHON |
PRBB152V-12111 |
|
|
JOINT TORIQUE |
PRB007001-0300G |
|
|
CHAMBRE ARRIÈRE |
PRBB182B-13100 |
|
|
BOUCHON |
PRB004012-10200 |
|
|
JOINT TORIQUE |
PRB007001-0200P |
|
|
MOIL POINT |
PRBB180-12510 | ||
CHISEL POINT |
PRBB180-12520 | ||
FLAT END POINT |
PRBB180-12540 | ||
KIT VALVE COMPLÈTE |
PRBB182V-114A0 |
|
|
KIT DE REGLAGE |
PRBB180V-11700 |
|
|
KIT TIRANT DE MARTEAU |
PRBB182B-12200 |
|
|
KIT VALVE AZOTE |
PRBB008-13200 |
|
|
KIT ACCUMULATEUR |
PRBB180V-14000 |
|
|
SOUPAPE EN CHAMPIGNON |
PRBB300-14400 |
|
|
KIT VALVE ACCUMULATEUR |
PRBB300-14500 |
|
|
Seal Kit |
PRBB181V-SK004 | ||
BRETELLE (BENNE) |
PRBB182D-55000 |
|
|
AMORTISSEUR INFÉRIEUR |
PRBB182D-35100 |
|
|
AMORTISSEUR SUPERIEUR |
PRBB180V-35200 |
|
|
PLAT DE MAINTIEN |
PRBB182V-35401 |
|
|
VIS À TÊTE HEXAGONALE |
PRB002001-24075 |
|
|
ECROU HEXAGONAL |
PRB002003-2400N |
|
|
PLAQUE GUIDE |
PRBB130V-27219 |
|
|
PLAQUE GUIDE (NYLON) |
PRBB203H-27229 |
|
|
PLAQUE GUIDE (NYLON) |
PRBB180D-27139 |
|
|
O-RING |
PRB007001-0340P |
|
|
CAISSON DE TÊTE |
PRBB182V-55024 |
|
|
AMORTISSEUR DE TÊTE |
PRBB181V-27110 |
|
|
BOUCHON |
PRBB180V-12800 |
|
|
BOUCHON ROND FOURREAU |
PRBB050V-12800 |
|
|
COUVERCLE |
PRBB102V-27129 |
|
|
COUVERCLE FLEXIBLE |
PRBB182V-37600 |
|
|
BOUCHON |
PRBB181V-27034 |
|
|
VIS À TÊTE FRAISÉE |
PRB002005-12035 |
|
|
BOUCHON |
PRBB230D-12800 |
|
|
VIS À TÊTE HEXAGONALE |
PRB002A01-14030 |
|
|
RONDELLE GROWER |
PRB002AH8-14000 |
|
|
GRAISSEUR |
PRB004013-10400 |
|
|
RACCORD |
PRB004016-10405 |
|
|
FLEXIBLE |
PRB100901-AA042055 |
|
|
FLEXIBLE |
PRB101602-AA230044 |
|
