REF : AB0352DA
HYDRAULIC BREAKER AB0352DA
This equipment is no longer available for sale. We invite you to check the available spare parts listed below or contact our sales department at +33 3 24 33 64 32 or by email at commerce@arden-equipment.com.
Description
This equipment is no longer available for sale. We invite you to check the available spare parts listed below or contact our sales department at +33 3 24 33 64 32 or by email at commerce@arden-equipment.com.
More Information
| Specification | Details |
|---|---|
| SKU | AB0352DA |
| Professions | Demolition, Earthmoving, Landscaping |
| Working pressure (psi) | 2538 |
| Flow min (gal/min) | 8 |
| Maximum flow rate (gal/min) | 17 |
| Noise level dB(A) | 116 |
| Weight (lbs) | 628.43 |

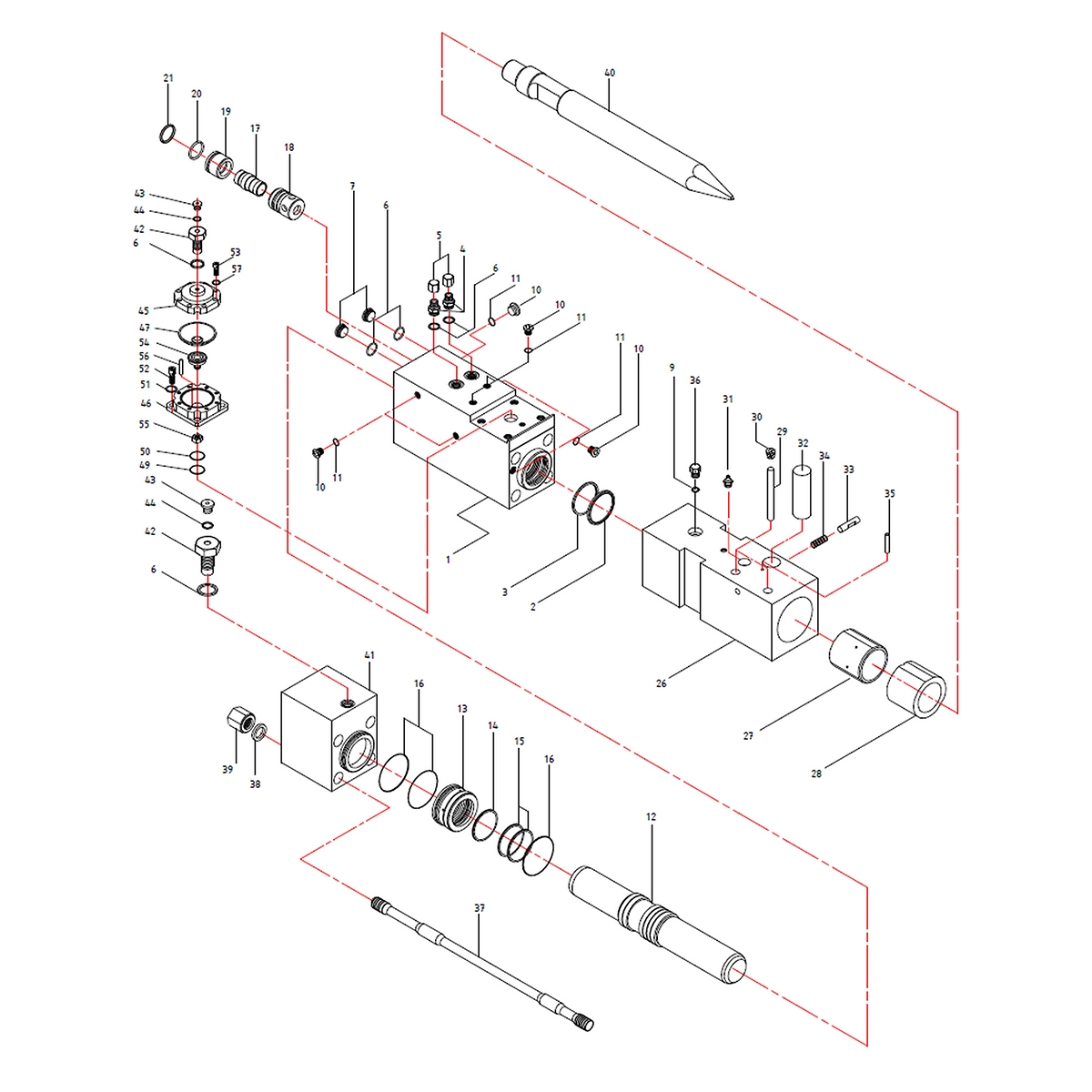

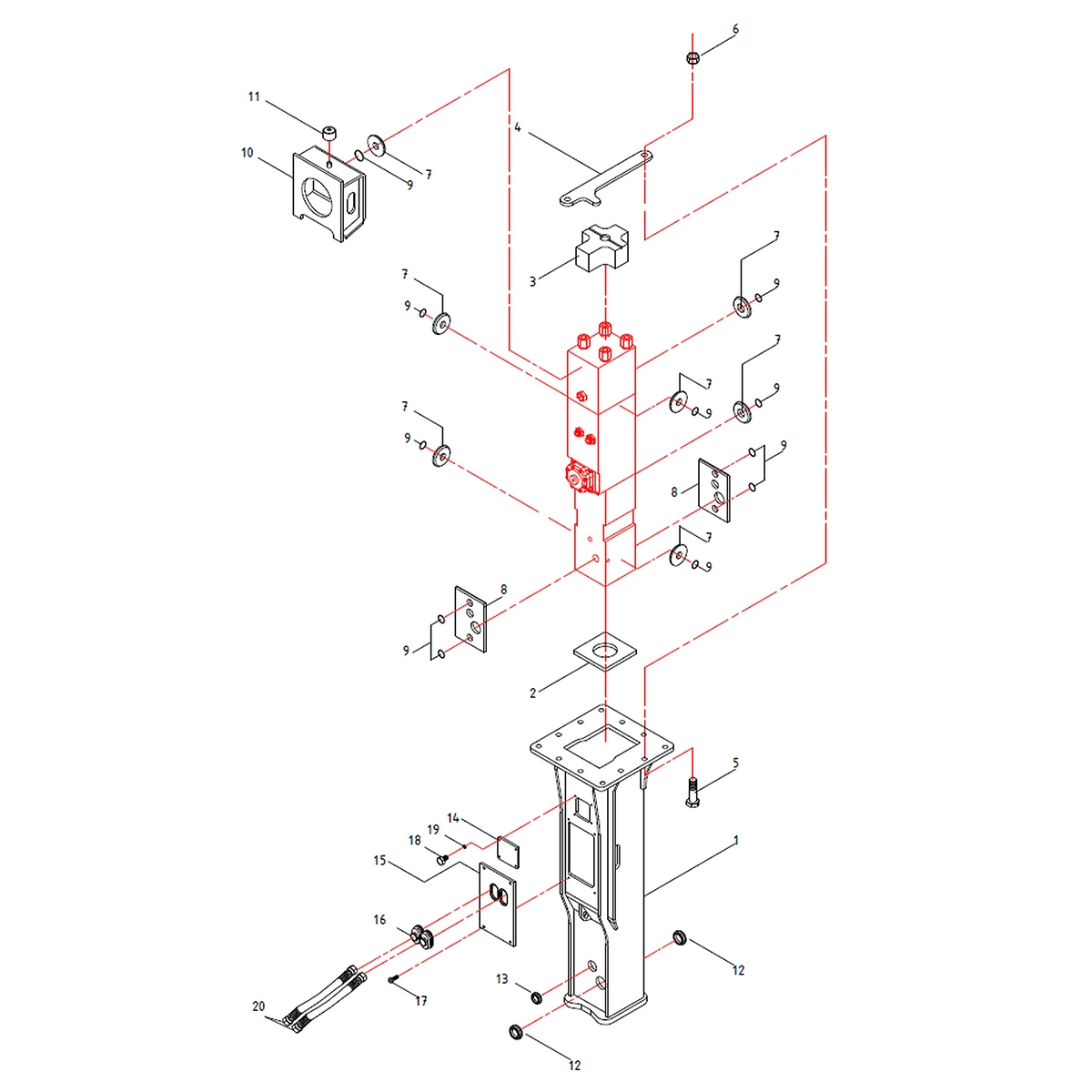

Spare Parts
Please note that these PRs are associated with the latest model currently in production.
Thank you for checking your equipment with the configurator by entering your serial number.
See the configurator| N° | Name | Reference | Actions |
|---|---|---|---|
| Spare part | |||
| BLOC CENTRAL | PRBB052V-11102 |
|
|
| JOINT | PRB007002-07000 |
|
|
| JOINT EN U À LÈVRES | PRB007004-07000 |
|
|
| RACCORD | PRBB008-11800 |
|
|
| BOUCHON | PRBB008-11900 |
|
|
| JOINT O-RING | PRB007001-0180P |
|
|
| BOUCHON | PRB004012-10200 |
|
|
| VOIR CAISSE - liste PF | PRB007001-0140P |
|
|
| BOUCHON | PRB004012-10400 |
|
|
| VOIR CAISSE - liste PF | PRB007001-0110P |
|
|
| PISTON | PRBB050-11200 |
|
|
| BAGUE BLOC CENTRAL | PRBB050-11300 |
|
|
| JOINT | PRB007005-06800 |
|
|
| JOINT COMPOSITE | PRB007007-06800 |
|
|
| JOINT TORIQUE | PRB007001-0900G |
|
|
| NEZ MARTEAU | PRBB052V-12101 |
|
|
| BAGUE | PRBB052V-12400 |
|
|
| FOURREAU | PRBB030V-12301 |
|
|
| Pin | PRBB030-12650 | ||
| Rubber plug | PRBB030-12620 | ||
| GRAISSEUR | PRB004013-10400 |
|
|
| RETAINER PIN | PRBB050-12600 | ||
| Pin | PRBB030-12610 | ||
| Spring | PRBB008-12630 | ||
| GOUPILLE | PRBB030-12640 |
|
|
| BOUCHON | PRBB050-12111 |
|
|
| CHAMBRE ARRIÈRE | PRBB052V-13100 |
|
|
| MOIL POINT | PRBB030-12510 | ||
| CHISEL POINT | PRBB030-12520 | ||
| POINTE PILON | PRBB030-12540 | ||
| KIT VALVE COMPLÈTE | PRBB041V-11456 |
|
|
| KIT DE TIRANT MARTEAU | PRBB050-12200 |
|
|
| KIT VALVE AZOTE | PRBB008-13200 |
|
|
| KIT ACCUMULATEUR | PRBB062V-14000 |
|
|
| SOUPAPE | PRBB062V-14400 |
|
|
| Seal Kit | PRBB052V-SK003 | ||
| BRETELLE (BENNE) | PRBB052V-55002 |
|
|
| AMORTISSEUR INFERIEUR | PRBB030V-35100 |
|
|
| AMORTISSEUR SUPERIEUR | PRBB050V-35200 |
|
|
| PLAT DE MAINTIEN | PRBB052V-35400 |
|
|
| VIS À TÊTE HEXAGONALE | PRB002001-18060 |
|
|
| VIS | PRB002003-1800N |
|
|
| RONDELLE GUIDE (NYLON) | PRBB050V-2721A |
|
|
| PLAQUE AMORTISSEUR | PRBB052V-2713A |
|
|
| O-RING | PRB007001-0340P |
|
|
| CAISSON DE TÊTE | PRBB052V-55024 |
|
|
| AMORTISSEUR | PRBB070V-27110 |
|
|
| BOUCHON | PRBB030V-12800 |
|
|
| BOUCHON ROND FOURREAU | PRBB050V-12800 |
|
|
| COUVERCLE | PRBB008V-27129 |
|
|
| COUVERCLE FLEXIBLE | PRBB052V-37600 |
|
|
| HOSE COVER | PRBB052V-27012 |
|
|
| VIS À TÊTE FRAISÉE | PRB002005-10025 |
|
|
| VIS À TÊTE HEXAGONALE | PRB002001-10020 |
|
|
| RONDELLE GROWER | PRB0020H8-10000 |
|
|
| FLEXIBLE | PRB100802-AA170044 |
|
