REF : AB0102DA
HYDRAULIC BREAKER AB0102DA
This equipment is no longer available for sale. We invite you to check the available spare parts listed below or contact our sales department at +33 3 24 33 64 32 or by email at commerce@arden-equipment.com.
Description
This equipment is no longer available for sale. We invite you to check the available spare parts listed below or contact our sales department at +33 3 24 33 64 32 or by email at commerce@arden-equipment.com.
More Information
| Specification | Details |
|---|---|
| SKU | AB0102DA |
| Professions | Demolition, Earthmoving, Landscaping |
| Working pressure (psi) | 2538 |
| Flow min (gal/min) | 3 |
| Maximum flow rate (gal/min) | 7 |
| Noise level dB(A) | 110 |
| Weight (lbs) | 171.99 |

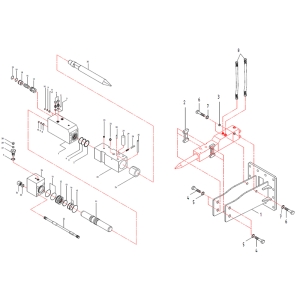

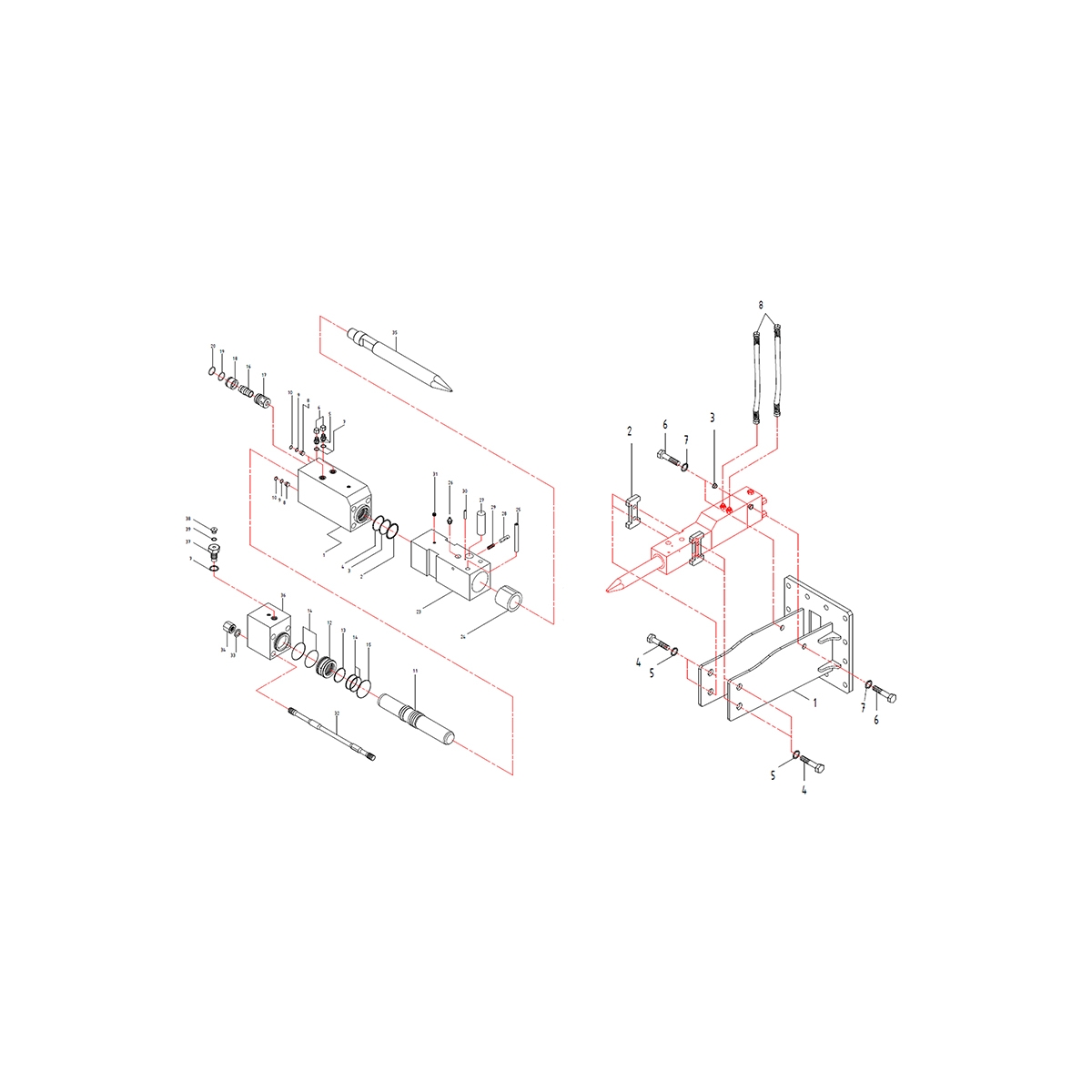

Spare Parts
Please note that these PRs are associated with the latest model currently in production.
Thank you for checking your equipment with the configurator by entering your serial number.
See the configurator| N° | Name | Reference | Actions |
|---|---|---|---|
| Spare part | |||
| BLOC CENTRAL | PRBB007V-11101 |
|
|
| JOINT | PRB007002-04000 |
|
|
| JOINT EN U À LÈVRES | PRB007004-04000 |
|
|
| JOINT COMPOSITE | PRB007006-04000 |
|
|
| RACCORD | PRBB008-11800 |
|
|
| BOUCHON | PRBB008-11900 |
|
|
| JOINT O-RING | PRB007001-0180P |
|
|
| BOUCHON | PRBB007V-14601 |
|
|
| VOIR CAISSE - liste PF | PRB007001-0110P |
|
|
| BAGUE ANTI-EXTRUSION | PRB007003-0110P |
|
|
| PISTON | PRBB007V-11200 |
|
|
| BAGUE BLOC CENTRAL | PRBB007V-11300 |
|
|
| JOINT | PRB007005-03700 |
|
|
| JOINT COMPOSITE | PRB007007-03700 |
|
|
| JOINT TORIQUE | PRB007001-0600G |
|
|
| JOINT TORIQUE | PRB007001-0220A |
|
|
| NEZ MARTEAU | PRBB007V-12100 |
|
|
| FOURREAU | PRBB007V-12301 |
|
|
| Pin | PRBB008-12650 | ||
| Pin | PRBB008-12610 | ||
| GRAISSEUR | PRB004013-10800 |
|
|
| RETAINER PIN | PRBB007V-12600 | ||
| Spring | PRBB008-12630 | ||
| Pin | PRB004045-05025 | ||
| BOUCHON | PRB004014-10400 |
|
|
| CHAMBRE ARRIÈRE | PRBB007V-13100 |
|
|
| [1] POINTE PYRAMIDALE | PRBB006V-12510 |
|
|
| [2] BURIN TRANSVERSAL | PRBB006V-12520 |
|
|
| [3] PILON | PRBB006V-12540 |
|
|
| KIT VALVE COMPLETE | PRBB008-11456 |
|
|
| KIT TIRANT | PRBB007V-12200 |
|
|
| KIT VALVE AZOTE | PRBB008-13200 |
|
|
| Seal Kit | PRBB007V-SK002 | ||
| PLATINE | PRBB007V-40000 |
|
|
| PLAQUE INFÉRIEURE | PRBB007V-40100 |
|
|
| SUPPORT | PRBB007V-40200 |
|
|
| VIS À TÊTE HEXAGONALE | PRB002001-20055 |
|
|
| RONDELLE GROWER ( IDEM RW20 ) | PRB002008-20000 |
|
|
| VIS | PRB002001-16050 |
|
|
| RONDELLE GROWER ( IDEM RW16 ) | PRB002008-16000 |
|
|
| FLEXIBLE | PRB100802-AA170044 |
|
