REF : AES070-H006
TYPE S HYDRAULIC QUICK HITCH
This equipment is no longer available for sale. We invite you to check the available spare parts listed below or contact our sales department at +33 3 24 33 64 32 or by email at commerce@arden-equipment.com.
Description
This equipment is no longer available for sale. We invite you to check the available spare parts listed below or contact our sales department at +33 3 24 33 64 32 or by email at commerce@arden-equipment.com.
More Information
Specification |
Details |
|---|---|
| SKU | AES070-H006 |
| Professions | Demolition, Earthmoving, Landscaping, Quarry, Railway, Recycling, Scrap |
| A (in) | 23.62 |
| B (in) | 2.76 |
| C (in) | 3.94 |
| D (in) | 17.64 |
| Working pressure (psi) | 5076 |
| Flow min (gal/min) | 1 |
| Maximum flow rate (gal/min) | 4 |
| Mounting / Tip | fiches\Eclates\Eclates En\En_Pieces_rechanges_AES070-H_revA.pdf |
| Weight (lbs) | 700.97 |

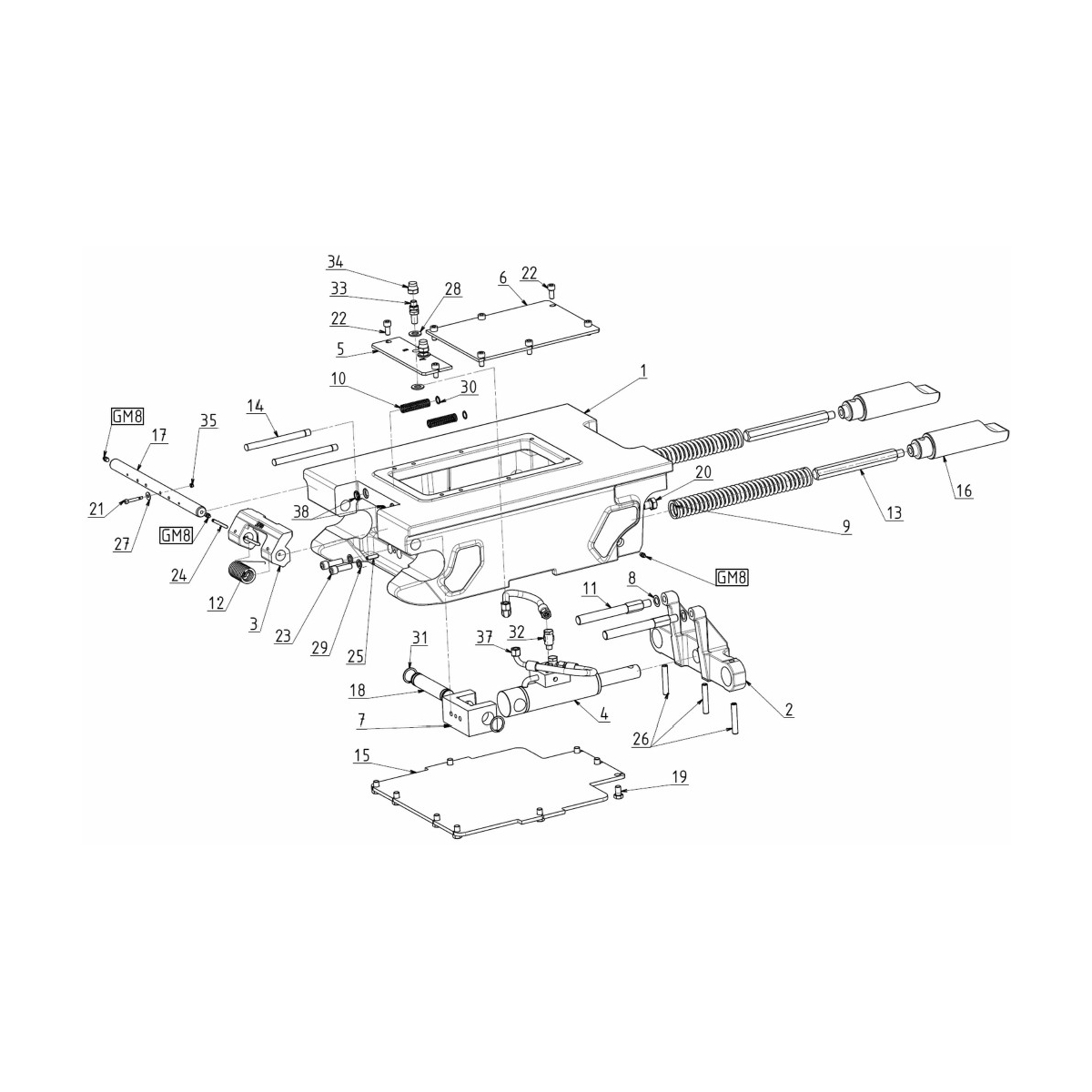

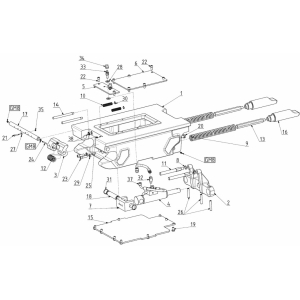

Spare Parts
Please note that these PRs are associated with the latest model currently in production.
Thank you for checking your equipment with the configurator by entering your serial number.
See the configurator| N° | Name | Reference | Actions |
|---|---|---|---|
| Spare part | |||
PROTECTION |
X3700 | ||
Spring |
X94145 | ||
Spring |
X94867 | ||
Spring |
X94872 | ||
PIN |
X94873 |
|
|
PIN |
X72977 | ||
Hex head capscrew |
HM12-020C08 | ||
Hex head capscrew |
HM16-020C10 | ||
VIS DE CENTRAGE CHC BOUT FILET 6x30 M5 ISO7379 |
X95563 |
|
|
Socket head capscrew |
CHC10-022C12 | ||
Socket head capscrew |
CHC12-040C12 | ||
Spring-type straight pin |
GE06-045 | ||
Flat washer |
RP06L | ||
Lock washer |
RZ12 | ||
Safety ring |
CIR014E | ||
Safety ring |
CIR030E | ||
adapter |
RAC30555 | ||
Self-locking nut |
HFR05 | ||
SEAL |
J30475 | ||
Grease nipple |
GM8 |
