REF : AT100QA23M-003
ARDEN TILT
This equipment is no longer available for sale. We invite you to check the available spare parts listed below or contact our sales department at +33 3 24 33 64 32 or by email at commerce@arden-equipment.com.
Description
This equipment is no longer available for sale. We invite you to check the available spare parts listed below or contact our sales department at +33 3 24 33 64 32 or by email at commerce@arden-equipment.com.
More Information
| Specification | Details |
|---|---|
| SKU | AT100QA23M-003 |
| Professions | Earthmoving, Landscaping, Railway |
| Option 1 | Handling holes |
| Option 2 | Mechanical QA23M |

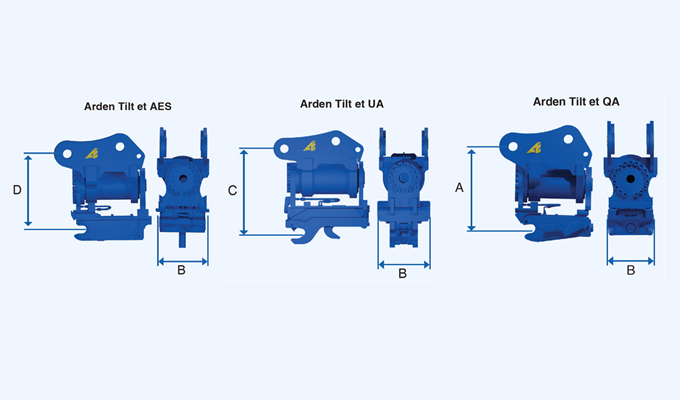

| A (in) | 18.5 |
| C (in) | 20.47 |
| Rotation flow rate max (gpm) | 15 |
| Rotation pressure (psi) | 3046 |
| Rotation flow rate min (gal/min) | 5 |
| Angle of inclination in degrees | 180 |
| Weight (lbs) | 474.08 |
| Minimum carrying weight (lbs) | 17640 |
| Maximum carrying weight (lbs) | 22050 |
